Indigenous Architects · Zajira · 2023–2025

AWT Padma
Resort Complex

Army Welfare Trust Resort · Hospitality Padma Bridge · Waterfront Revit BIM Phase 1 Complete · 2025

The Padma, tail end of the mighty Ganges, is the river that defines the riverine country of Bangladesh: a gentle but unforgiving force that shapes the land and the imagination of those who live with it. The Padma Bridge is the epitome of the nation's relentless pursuit of progress, the engineering act that dares to traverse the humbling giant. The AWT Padma Resort sits on the southern bank at Zajira, with a courtside view of the bridge: a project conceived to receive the river and the bridge as a single landscape.

The brief is hospitality. The site is 13.5 bigha (176,000 sqft) of land at Zajira, Greater Faridpur, on the southern bank of the Padma. It sits 1.1 km of visual distance from the Padma Bridge and 2.75 km of vehicular distance from the bridge landing approach, running parallel to the bridge's span across the water. The development unfolds in three phases. Phase 1, completed December 2025, comprises two G+5 accommodation buildings totalling forty rooms, a riverside restaurant for 150 guests, a 120-foot swimming pool with amenities, an amphitheatre at plaza level, a sculpture garden, a 350-foot boating ghat tracing a meandering water body, a 300-by-125-foot multipurpose green field, peripheral walkways, and parking for fifty cars.

The project was led by Ar. Sayeed Ahmed, principal of Indigenous Architects in Dhaka, who developed a design that celebrates both the river and the bridge. My role was to aid the principal architect in developing the design and producing the full Revit BIM model for our client, the Army Welfare Trust of Bangladesh.

Programme Recreational · Hospitality
Phase 1 of 3 Phases
Location Zajira, Greater Faridpur
Southern Bank, Padma River
Client Army Welfare Trust
of Bangladesh
Firm Indigenous Architects
Principal: Ar. Sayeed Ahmed
Role Design Development
Revit BIM Modelling
Site Area 13.5 Bigha
176,000 sqft
Status · Year Phase 1 Complete · 2023–2025

The Site and the Bridge

The site is encapsulated by horizontal, organic surroundings: traditional village landscapes of Bangladesh on three sides, the Padma on the fourth. The horizontality of the river is the dominant fact. Every move on this site begins from that line: the building masses are kept low and parallel to the water, the elevated terrace extends along the linear axis of the site, and the long view from the building fronts is framed and held open. Across the water, slightly offset, the Padma Bridge runs in counterpoint: an industrial line answering the natural one. The architecture sits between them.

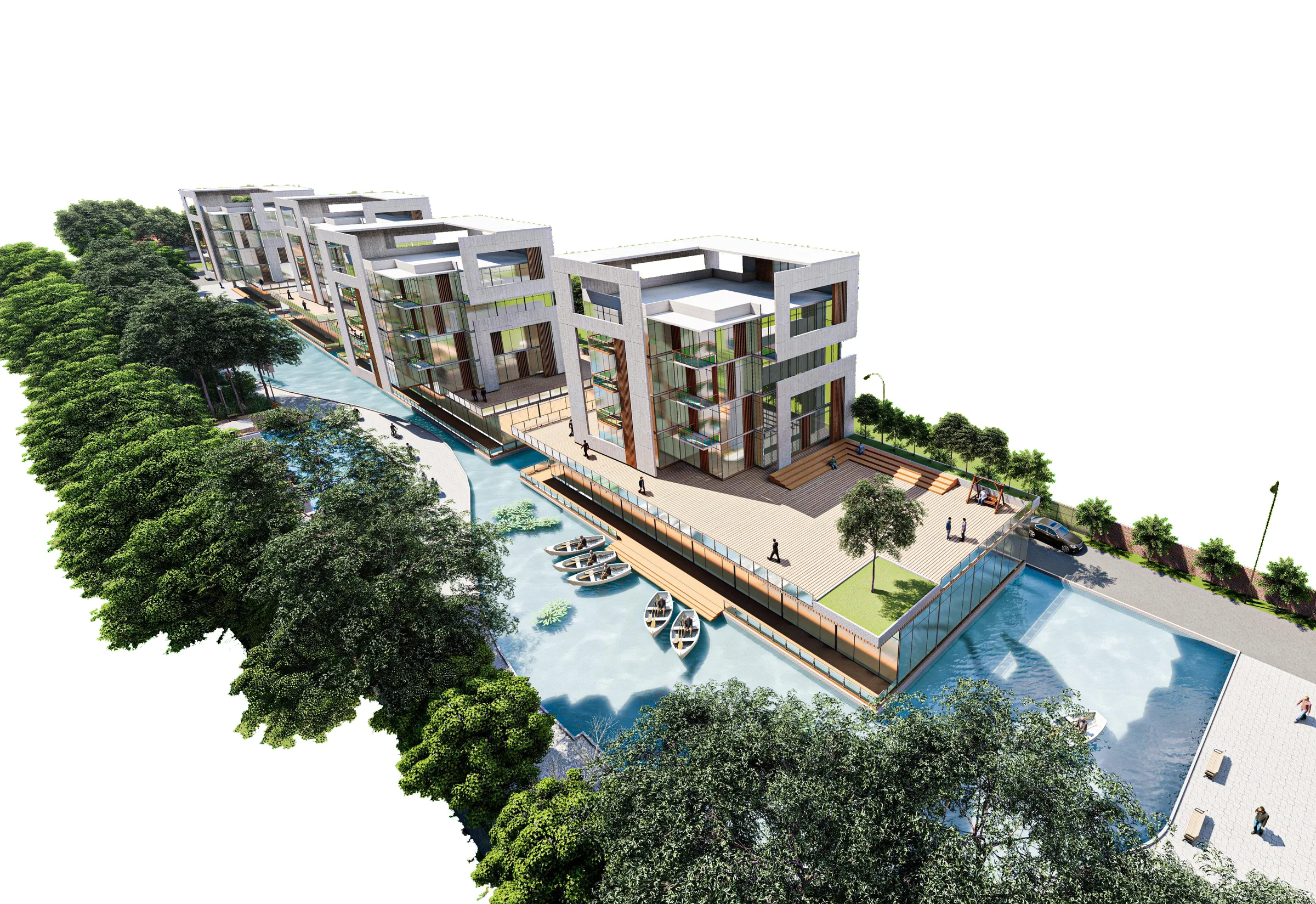

Axonometric overview render: the resort complex along a curved meandering water body, flanked by dense plantation and the elevated boating ghat, the building masses parallel to the river axis Axonometric Overview · Water Body, Boating Ghat, Resort Blocks

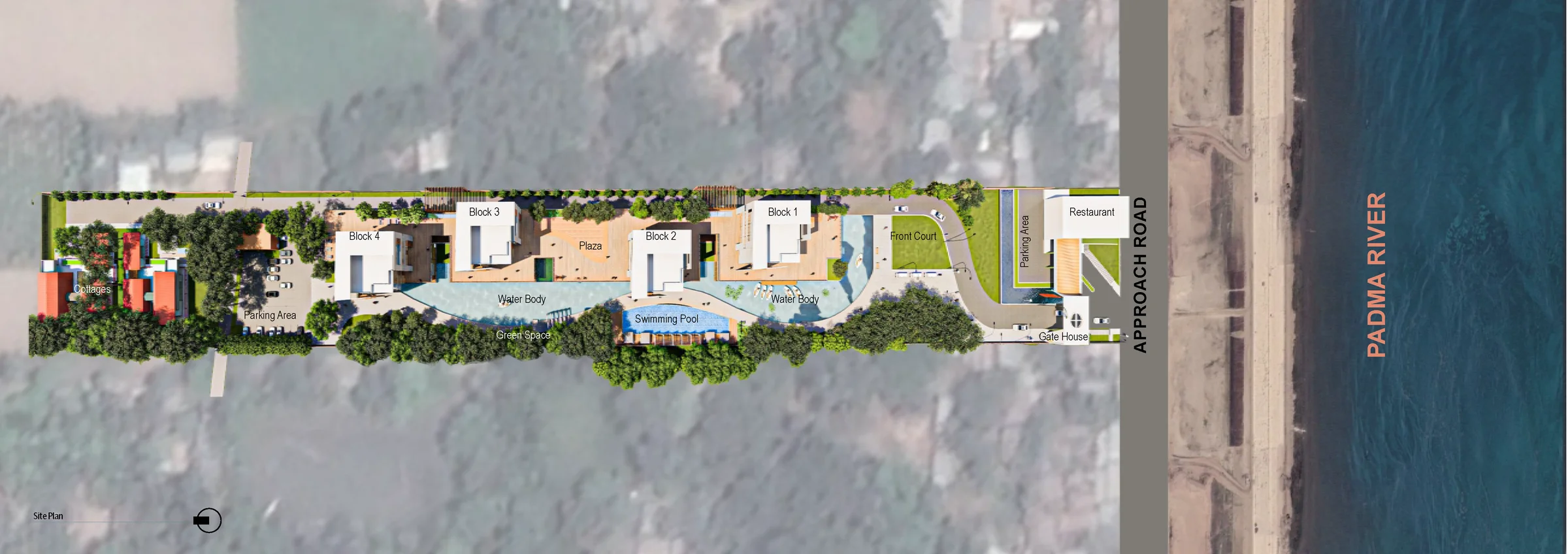

Site plan: the 13.5 bigha site at Zajira, the resort complex laid out parallel to the Padma riverfront, with the bridge running across the water

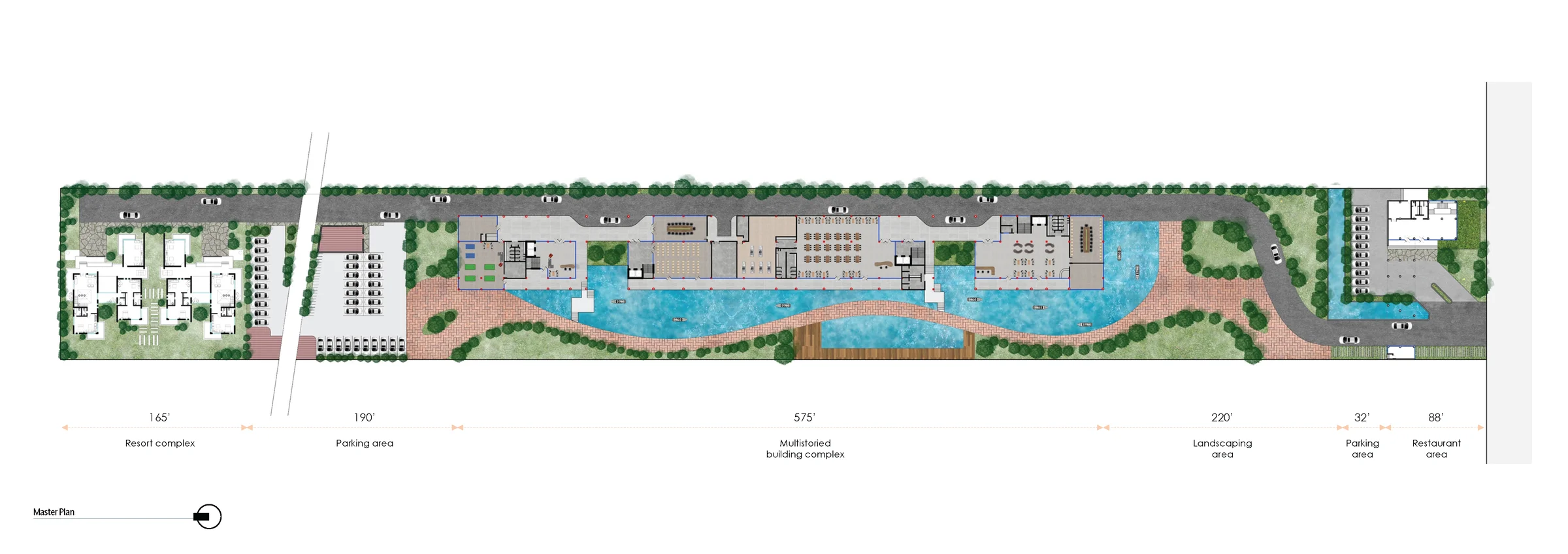

Master plan: the full programme distribution across all three phases, showing accommodation blocks, restaurant, pool, plaza, sculpture garden, water body and parking

The Riverside Restaurant

The riverside restaurant is the public face of the resort to the river. It reads as a standalone pavilion from the approach: a horizontal volume, low and long, its glazed perimeter catching the river light at the water's edge. The resort entrance sits directly beside it, so the first thing a guest sees upon arrival is the restaurant framing the threshold. Inside, 150 covers are arranged around the long river-facing wall. Timber ceiling slats, warm brass, and the panoramic view as the primary interior element: the Padma River and the horizon as the wall. From the table by the glass, the river view from the restaurant is exactly that of the bridge.

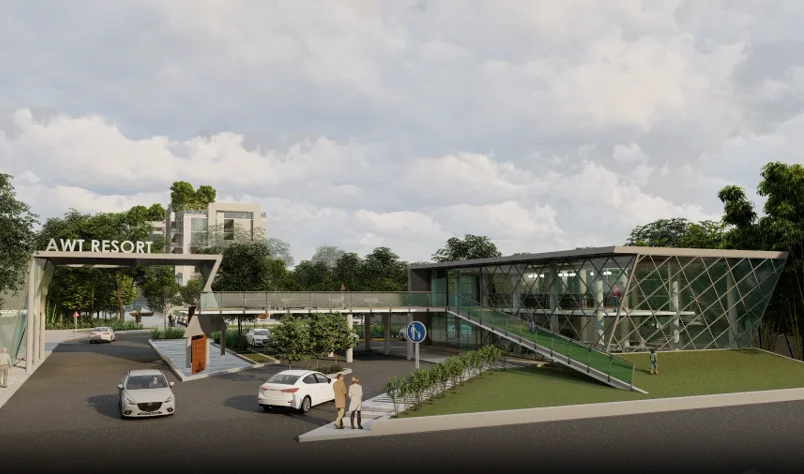

The riverside restaurant and the resort entrance: the low horizontal restaurant pavilion with full-height glazing sits beside the resort entry gate, a lush planted courtyard connecting them on the approach from the road The Riverside Restaurant and Resort Entrance
Riverside restaurant exterior: a low-slung pavilion building with a full-height glazed river-facing wall, set on the edge of the water body, the boating ghat and Padma beyond Riverside Restaurant · Exterior

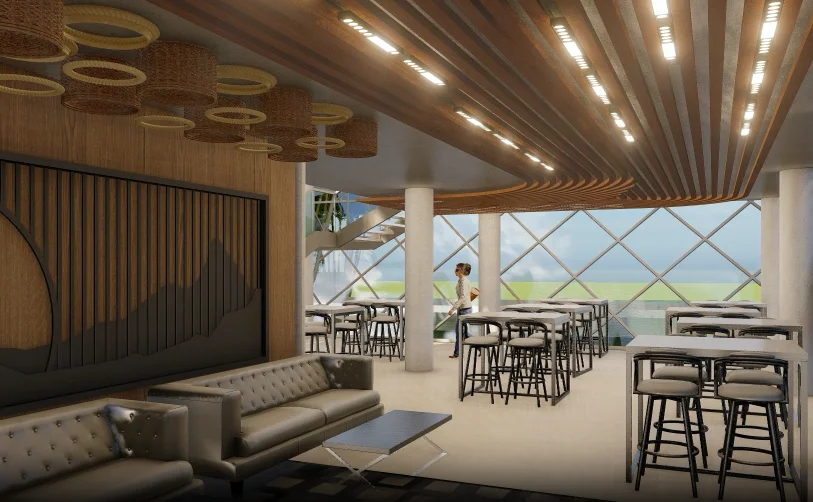

Riverside restaurant interior: timber-slatted ceiling, full-height glazing onto the river, mix of dining tables, bar seating and lounge clusters, panoramic river view across the long edge Riverside Restaurant Interior · River View Wall

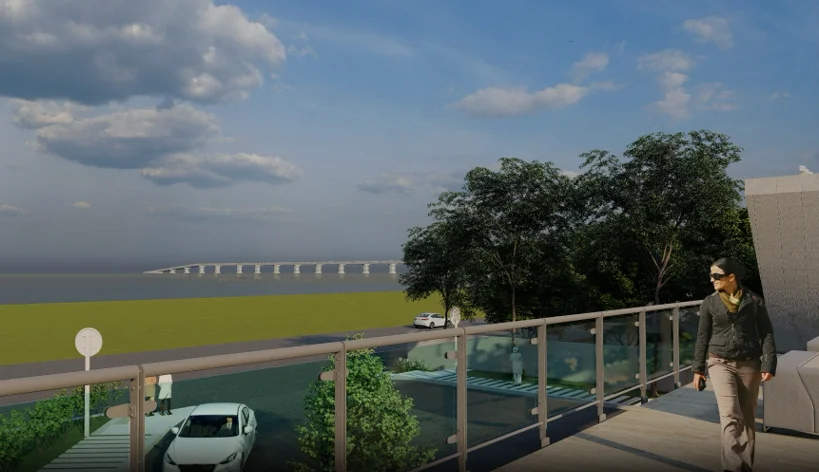

The river view from the Riverside Restaurant: the Padma River stretching to the horizon, the Padma Bridge spanning the water in the distance, seen through the full-height glazed wall of the restaurant The River View from the Riverside Restaurant · Padma Bridge on the Horizon

Arrival and Drop-Off

The arrival sequence is compressed and deliberate. The resort entrance gate marks the threshold: branded with the AWT Resort identity, a sculptural double-helix marker at the access control point. From there the guest moves through the approach to the resort buildings, past the water park amenity on one side, and arrives at the drop-off entrance beneath the elevated terrace. The geometry decompresses at each step: from the tight gate, to the open approach boulevard, to the covered drop-off porch and the plaza beyond.

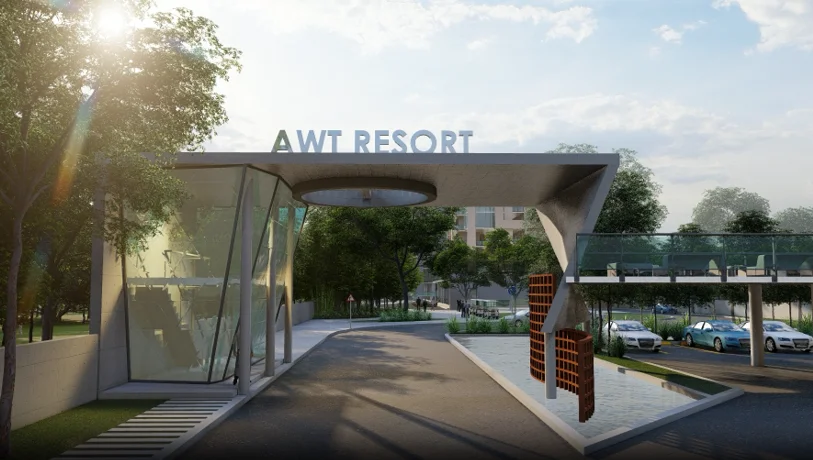

The resort entrance gate: the access control point branded with 'AWT RESORT' signage, a sculptural double-helix marker at the threshold, parking visible beyond the gate The Resort Entrance · Access Control Gate
Approach to the resort buildings: the driveway boulevard lined with planters and trees, the two G+5 accommodation blocks rising ahead, the elevated terrace connecting them above the ground level Approach to the Resort Buildings

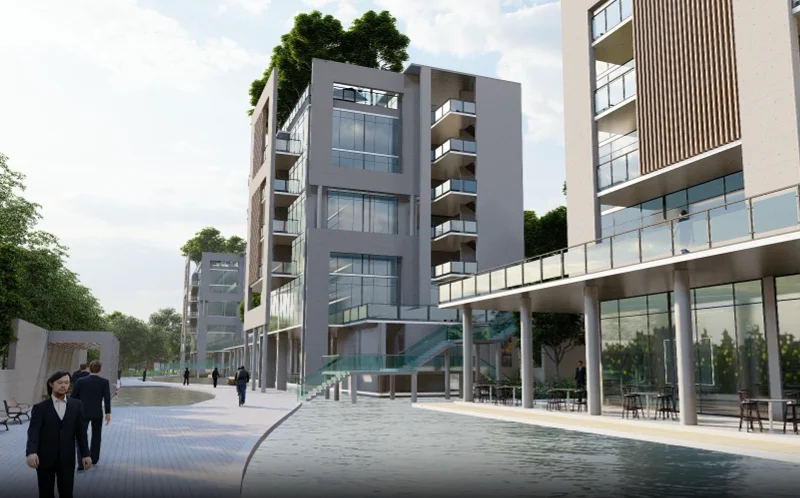

View of the resort building from the water park: the G+5 accommodation block seen across the pool and water park amenity area, the elevated terrace visible above the ground-floor programme Resort Building from the Water Park

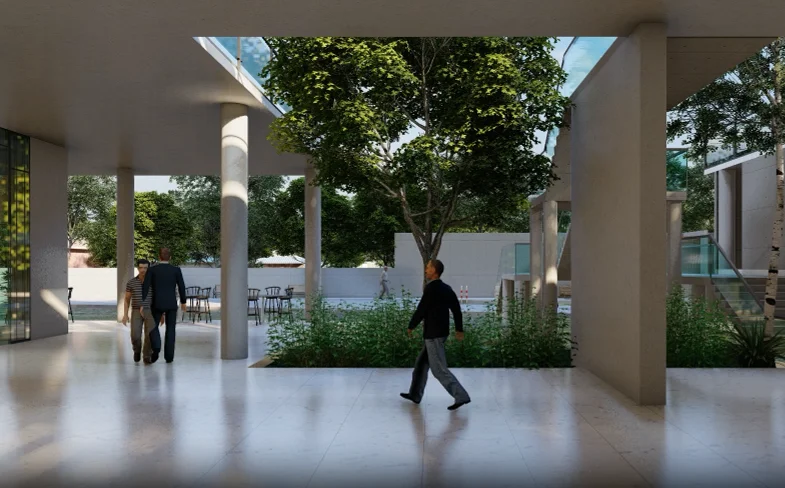

Drop-off entrance: the covered porch beneath the elevated terrace, a porte-cochere with warm lighting above the vehicle drop-off, the resort lobby entry beyond Drop-Off Entrance · Porte-Cochere

Reception, Café and Dining

The ground floors of the two accommodation buildings hold the full service programme for arriving and resident guests. The reception desk anchors the lobby of Building 01: timber and brass, a warm double-height waiting area behind the concierge line. Beside it, the semi-outdoor café opens to the plaza edge through tall glazed panels, bringing daylight and plantation into the hospitality sequence. Building 02 holds the resort restaurant area: a full-service indoor dining room with bar seating and communal tables for 150, serving the resort's all-day food-and-beverage programme.

Reception lobby: long open plate with the 'RECEPTION' sign at the desk, warm timber finishes, ribbon lighting in the ceiling, lounge seating in the foreground Reception and Waiting Area · Building 01 Ground Floor

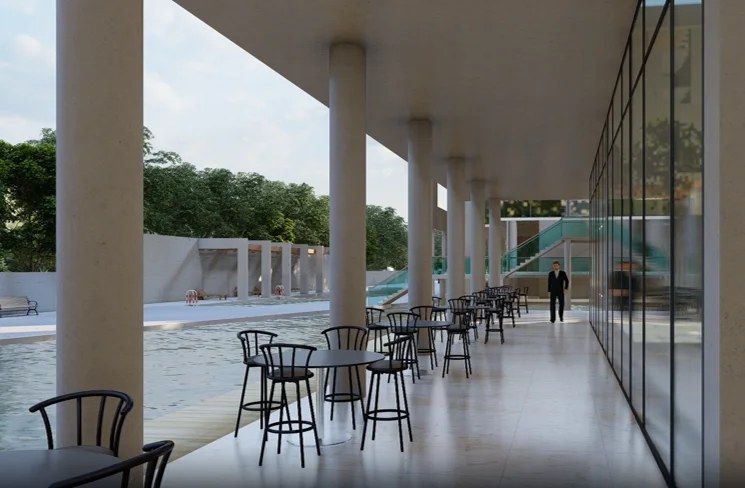

Semi-outdoor café area: a colonnaded arcade with tall white columns, café seating under the overhang, full-height glazing to the interior, the plaza and plantation visible on the open side Semi-Outdoor Café Area · Plaza Edge

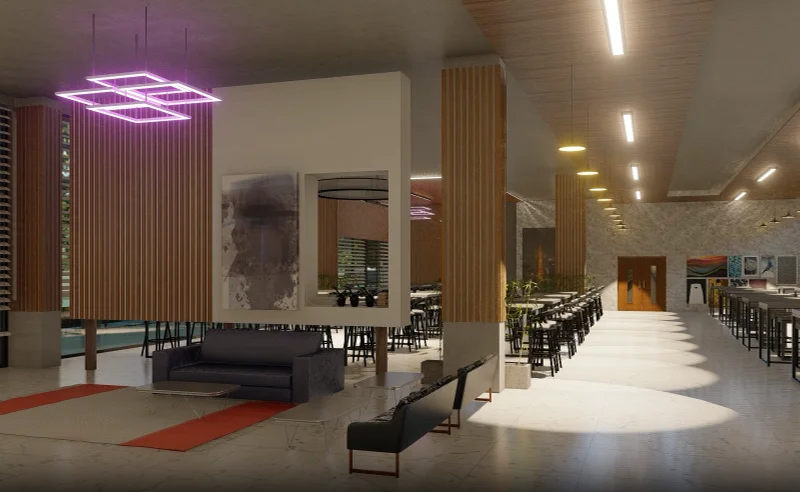

Resort restaurant area: a warm moody interior with a sculptural pendant feature overhead, lounge clusters in the foreground and dining tables beyond, full-service all-day dining Resort Restaurant Area · Building 02 Ground Floor

The Plaza

The elevated plaza is the social heart of the resort: a continuous outdoor platform that holds the building volumes, the amphitheatre, the sculpture garden, and the long river view. The approach from the drop-off ascends to the plaza level through a landscaped ramp sequence; from the plaza surface the bridge and river are composed in the eye. The elevated areas at the river edge are furnished with rattan pod loungers and mature integrated trees: a terrace above the landscape it stands on, addressing the Padma Bridge across the water.

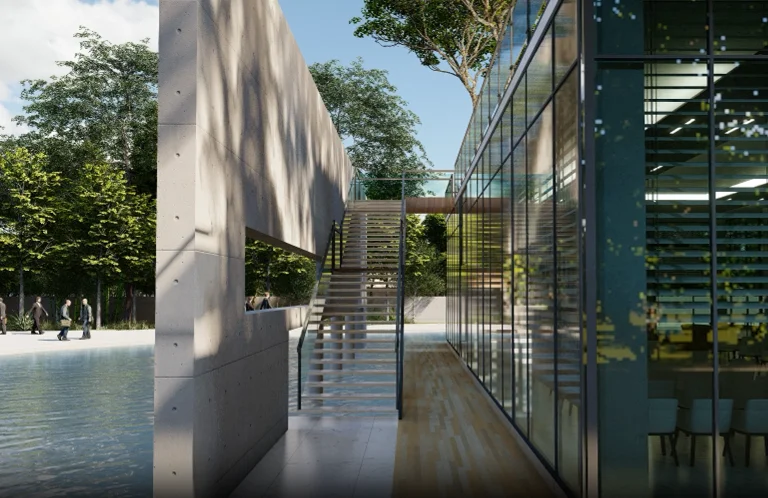

Approach to the plaza: the landscaped ramp sequence ascending from the ground level to the elevated platform, dense plantation framing the path, the resort blocks rising on either side Approach to the Plaza

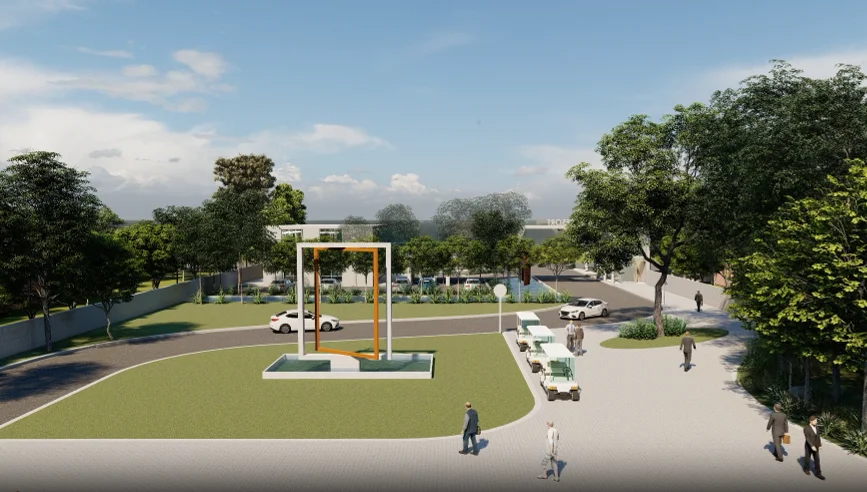

View from the plaza: the elevated platform looking out from the resort surface, plantation and walkways below, the Padma River visible at the horizon beyond the resort boundary View from the Plaza

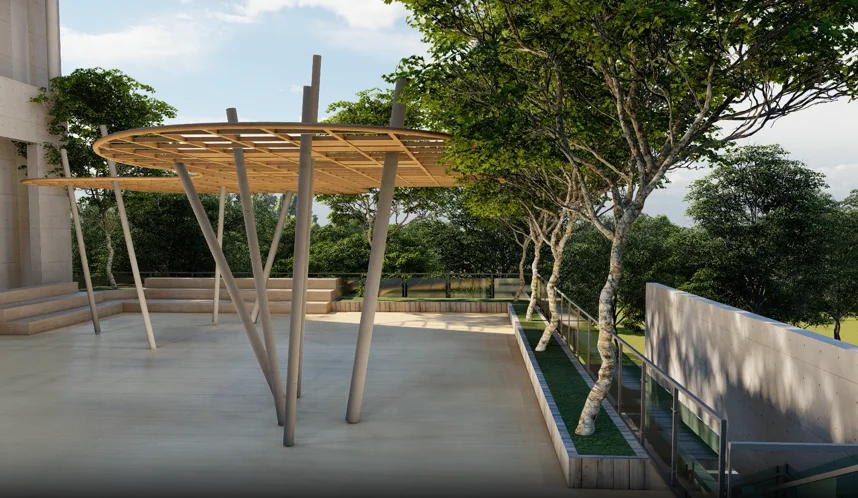

Elevated plaza area: the raised outdoor terrace with rattan pod loungers arranged on the paved surface, mature trees integrated into the platform, the river horizon framed beyond the railing Elevated Plaza · River-Facing Terrace

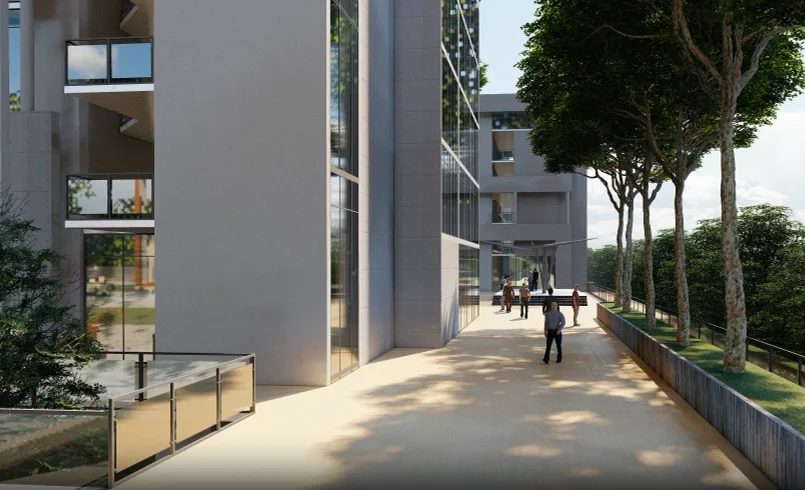

Elevated plaza area from a second vantage: the plantation and walkway below the terrace edge, the resort block mass to one side, the open river view to the other Elevated Plaza · Terrace Edge

Conference and Seminar

Below Building 01 sit the formal meeting facilities: a 150-person conference hall and a seminar room for smaller working groups. The conference hall is finished in timber panelling with full AV presentation capability; the seminar hall is configured for a more intimate setting, with a feature staircase element dividing the space. Both rooms open to the public ground-floor lobby programme, so conference and hospitality traffic share the same sequence without collision.

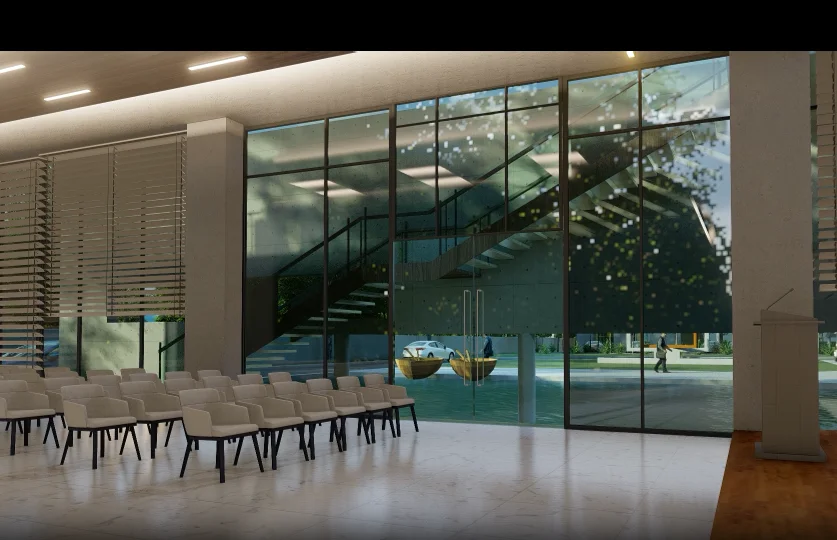

Seminar hall: an intimate meeting room with a sculptural feature staircase rising behind a glass partition, communal table arrangement, full-height windows along the side wall Seminar Hall · Feature Stair

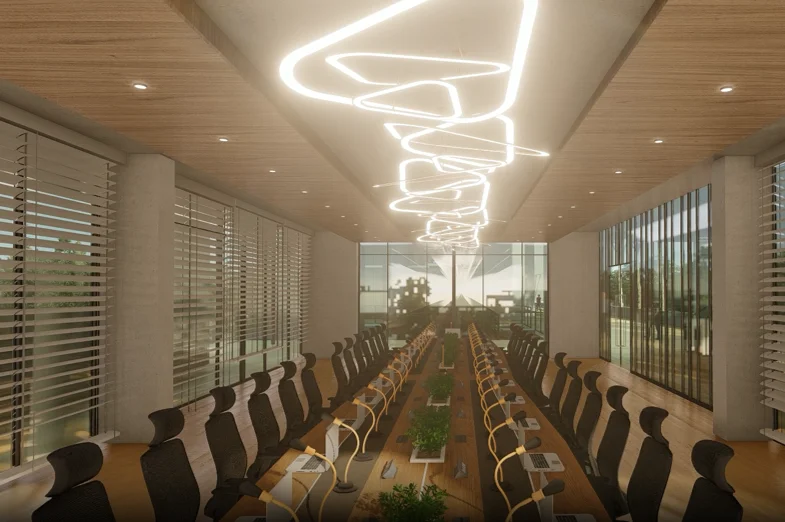

Conference hall: a 150-person formal meeting room with a long conference table set for a presentation, suspended circular ribbon lighting feature overhead, timber-panelled walls Conference Hall · 150-Person Capacity

Guest Rooms

Levels 03 to 06 of the two G+5 buildings hold the forty guest rooms of Phase 1: Deluxe Rooms and Premium Deluxe Rooms, each oriented to the Padma River. The Deluxe Room interiors are composed around a circular wall sculpture at the headboard, twin pendant lights flanking the bed, and a full-height window opening to the river view. The Premium Deluxe Rooms step up in area and finish: a fully timber-slatted accent wall behind the bed, a circular mirror console, a wider panoramic glazing. In both room types, the river and the bridge are the principal furniture.

Deluxe Room interior: a bed with a circular wall sculpture above the headboard, twin pendant lights flanking the bed, a mid-tone palette of timber, fabric and brass, river-facing window Deluxe Room Interior
Deluxe Room interior: a second view, warm pendant lighting either side of the bed, drawn curtains across the river-facing wall, a calm low-key composition of timber and warm white Deluxe Room Interior · Evening

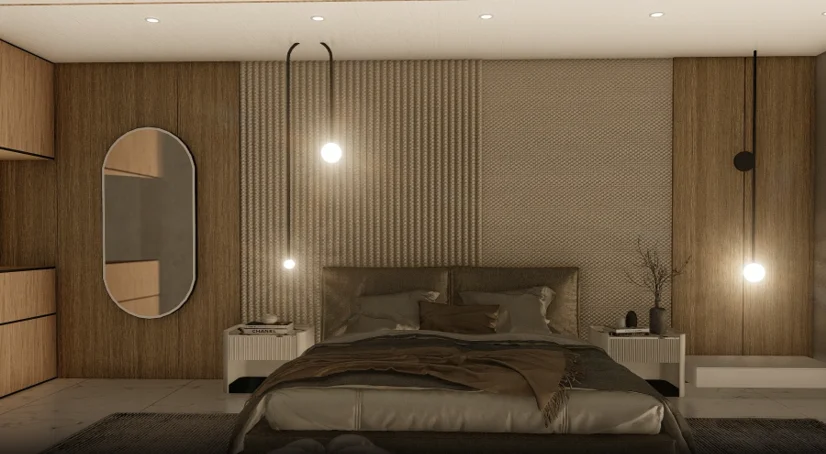

Premium Deluxe Room interior: a fully timber-slatted accent wall behind the bed, a circular mirror and a small console, warm pendant lighting either side, wider room with generous glazing Premium Deluxe Room Interior · Timber-Slat Wall
Premium Deluxe Room interior: a second view, low-slung bed against the timber accent wall, a TV console wall to one side, full-height glazing opening to the Padma River and the bridge horizon Premium Deluxe Room Interior · River View

The Rooftop

The roof of Building 01 holds the juice bar: a compact interior counter opening to a terrace with lounge seating under the open sky. On the rooftop of Building 02, the viewing deck addresses the Padma Bridge directly. Pod-form rattan loungers on a tiled deck, the river at arm's length, the bridge spanning the full horizon. The programme is simple and correct: a place to sit above the resort, above the river, and look at the bridge.

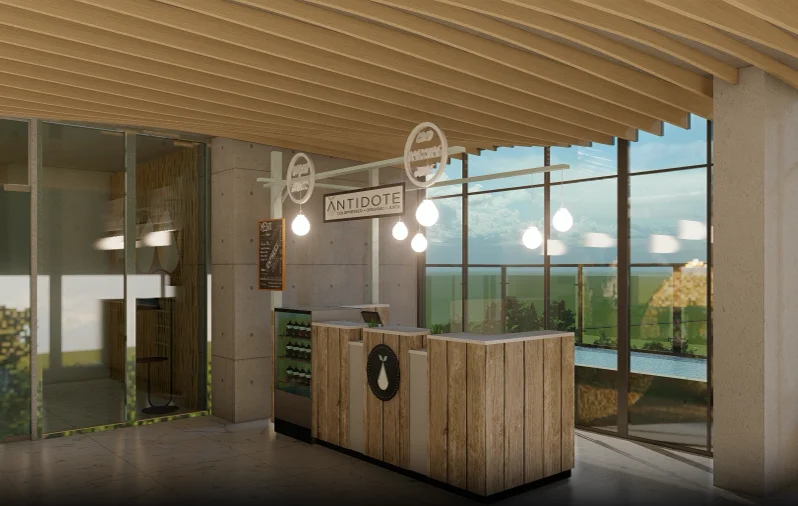

Rooftop juice bar interior: a timber counter with branded signage above, full-height windows along the back wall letting in the sky, terrace seating visible beyond the glazing Rooftop Juice Bar · Building 01 Roof

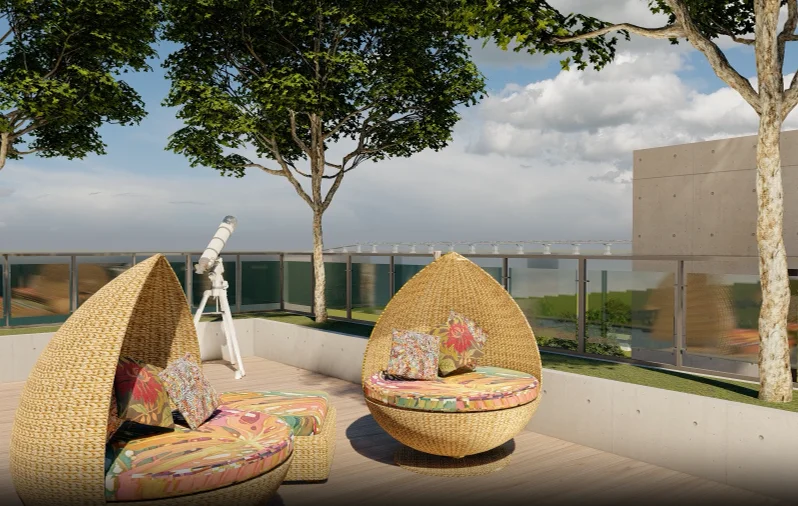

Rooftop viewing deck: pod-form rattan loungers arranged on the tiled roof terrace, mature trees framing the view, the Padma River visible on the horizon at the railing Rooftop Viewing Deck · River Horizon

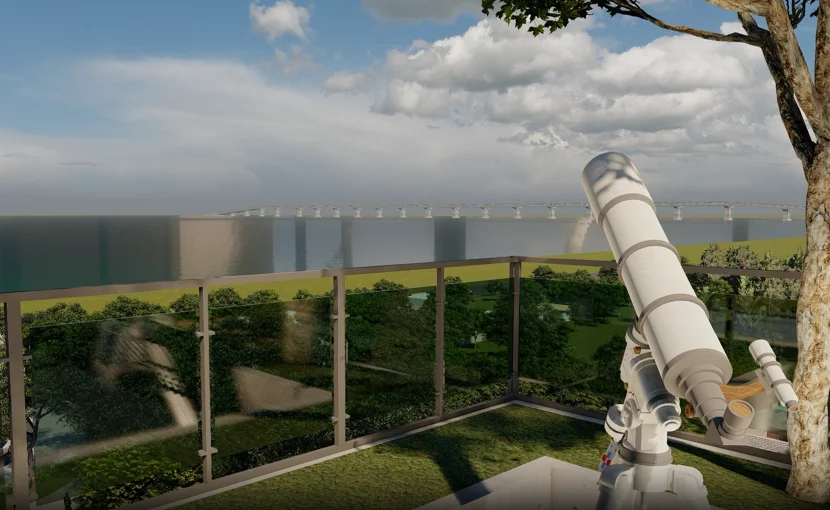

Rooftop viewing deck from a second vantage: the open-air terrace looking toward the Padma Bridge, a brass telescope mounted at the railing pointed across the river to the bridge span Rooftop Viewing Deck · Padma Bridge in the Sights

Plans

The plan strategy is direct: parallel axes, water on the river side, ground-floor public programme aligned with the elevated terrace above, accommodation stacked on top.

Ground floor plan: building 01 with reception, concierge, conference hall and semi-outdoor cafe; building 02 with resort restaurant, lounge and kitchen; pool and plaza below; parking and services to the rear

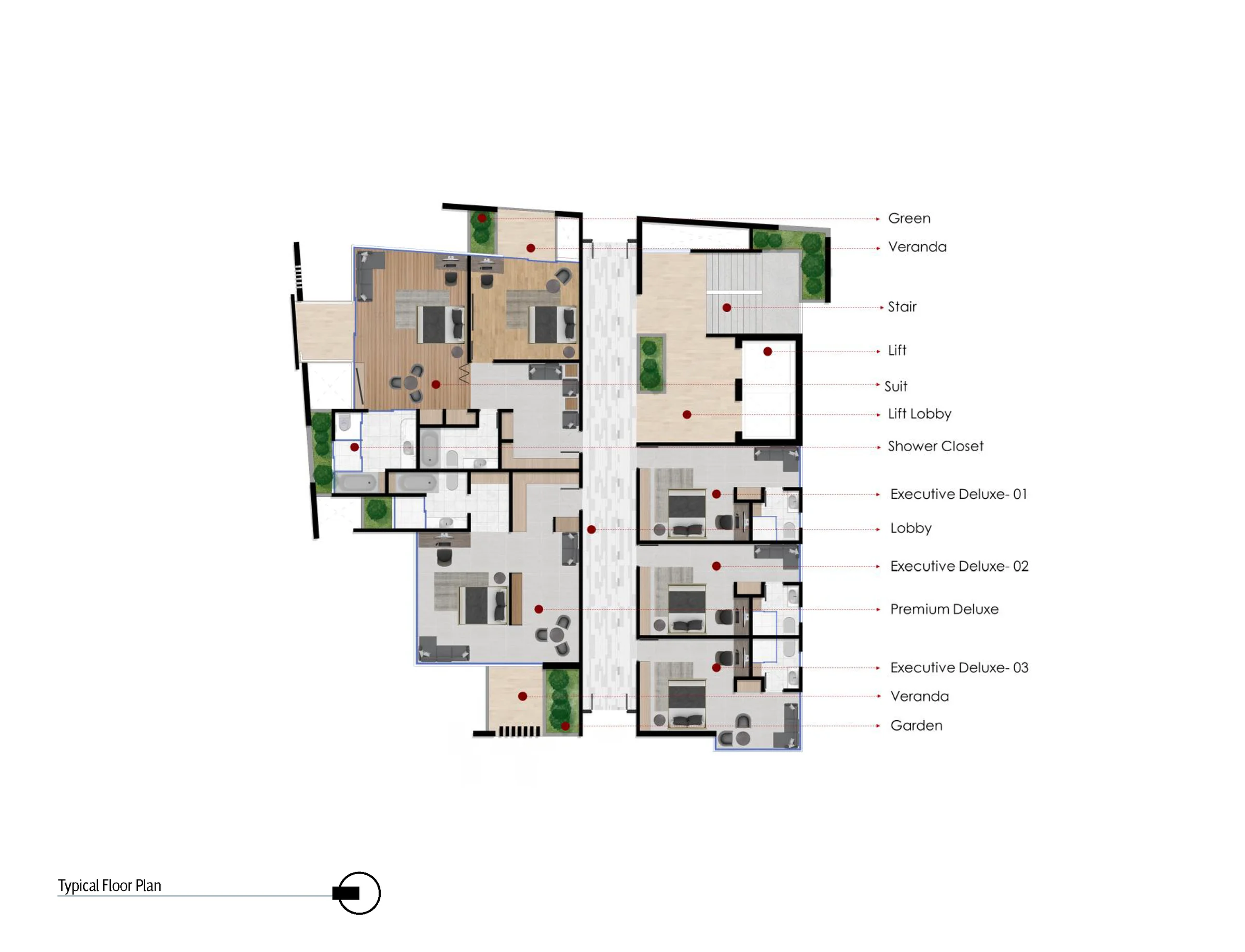

Typical guest floor plan: a paired arrangement of Deluxe Room and Premium Deluxe Room around a central core of lift lobby and housekeeping, both buildings configured as mirror pairs

The Walk-Through

The full client presentation walkthrough, prepared for the Honourable Chief of Army Staff of Bangladesh in advance of construction. The flythrough traces the sequence from arrival, through the elevated plaza and the public realm, into the riverside restaurant, the lobbies and dining halls, and up to the rooftop against the bridge.

Construction

Phase 1 of the AWT Padma Resort completed construction in December 2025. The footage below records the project on site: the two G+5 accommodation blocks, the elevated terrace, the riverside restaurant, and the surrounding landscape works in the final stage of completion before handover to the Army Welfare Trust.

Phase 1 Complete

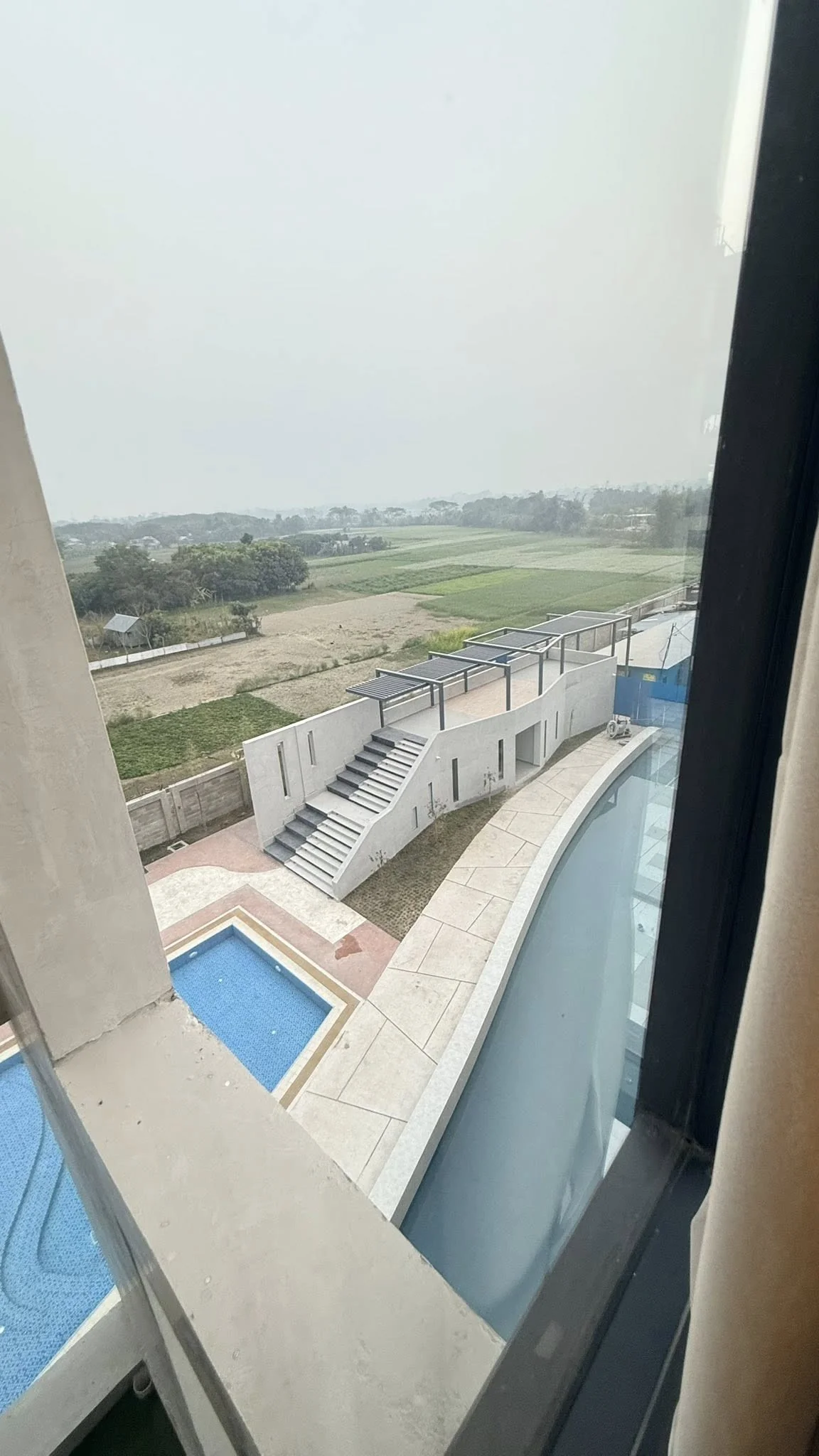

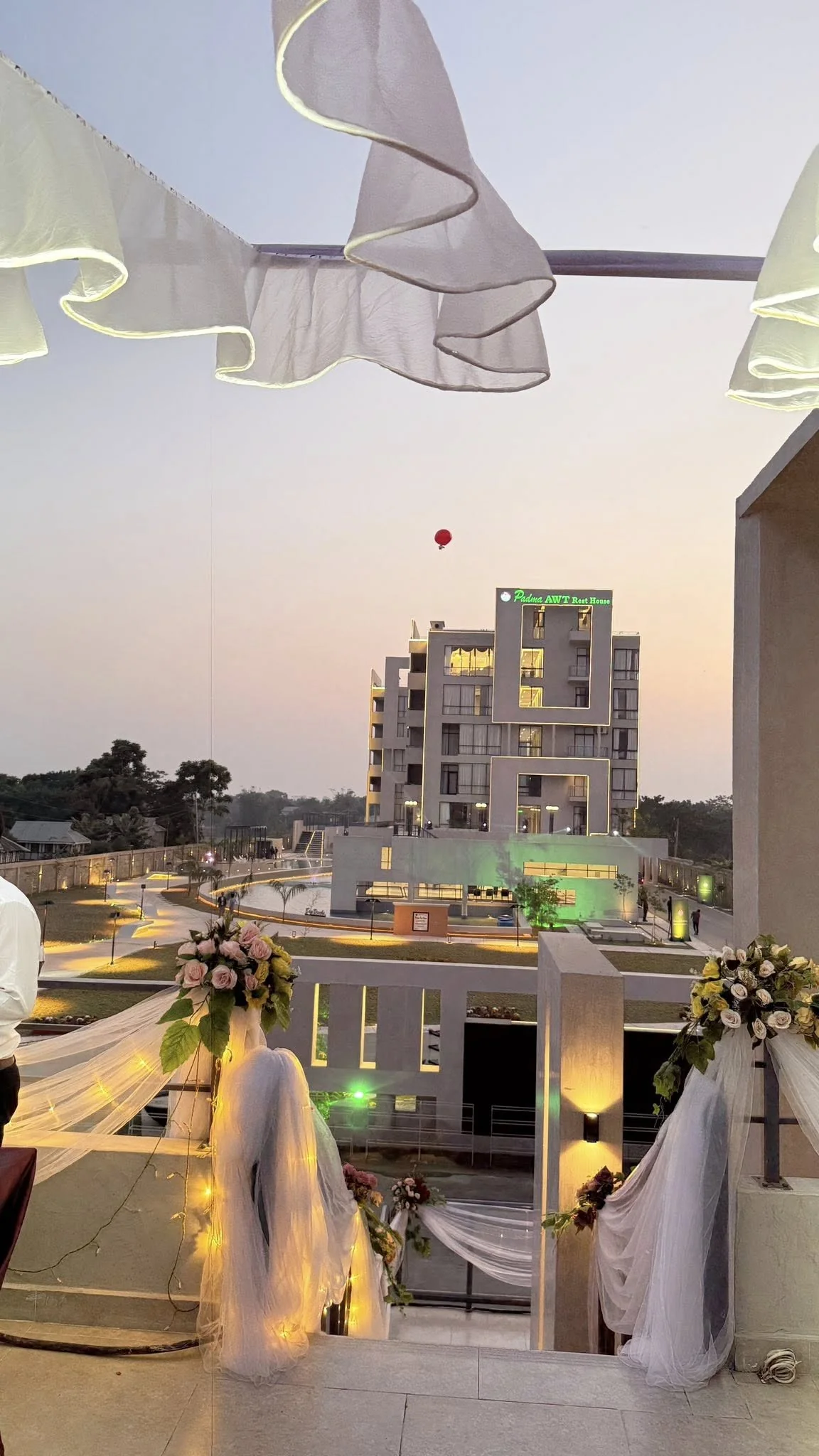

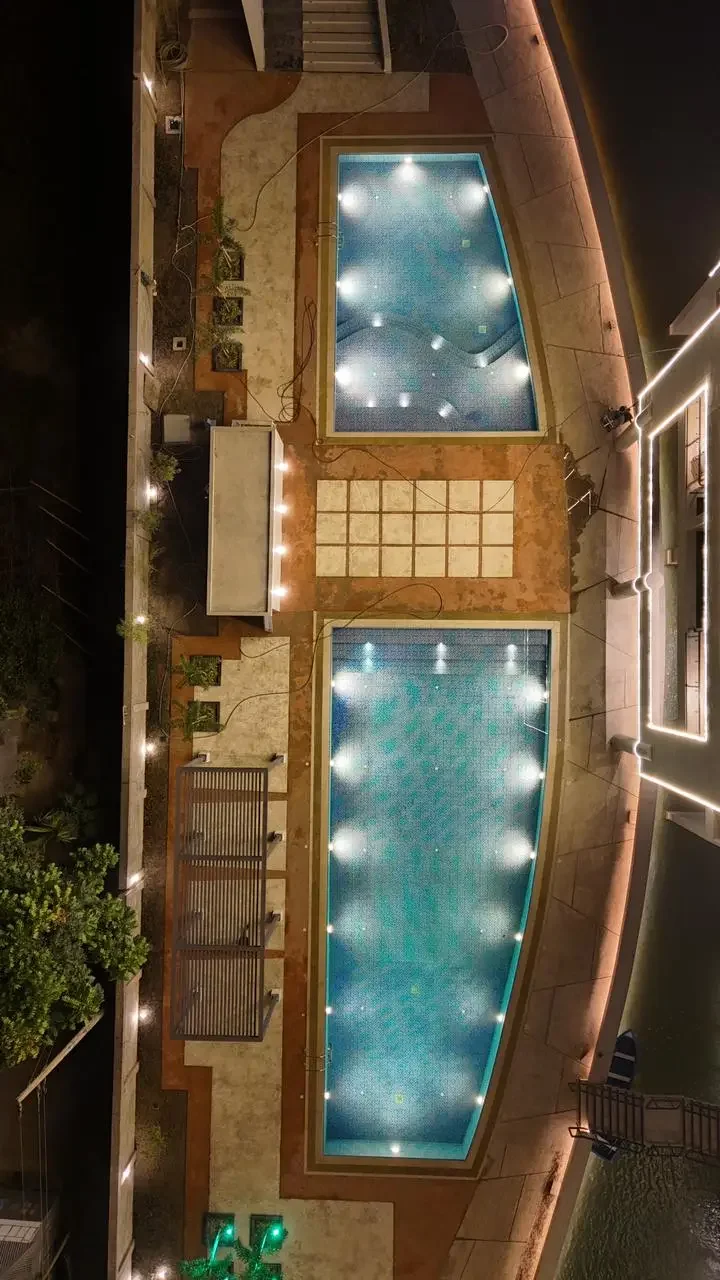

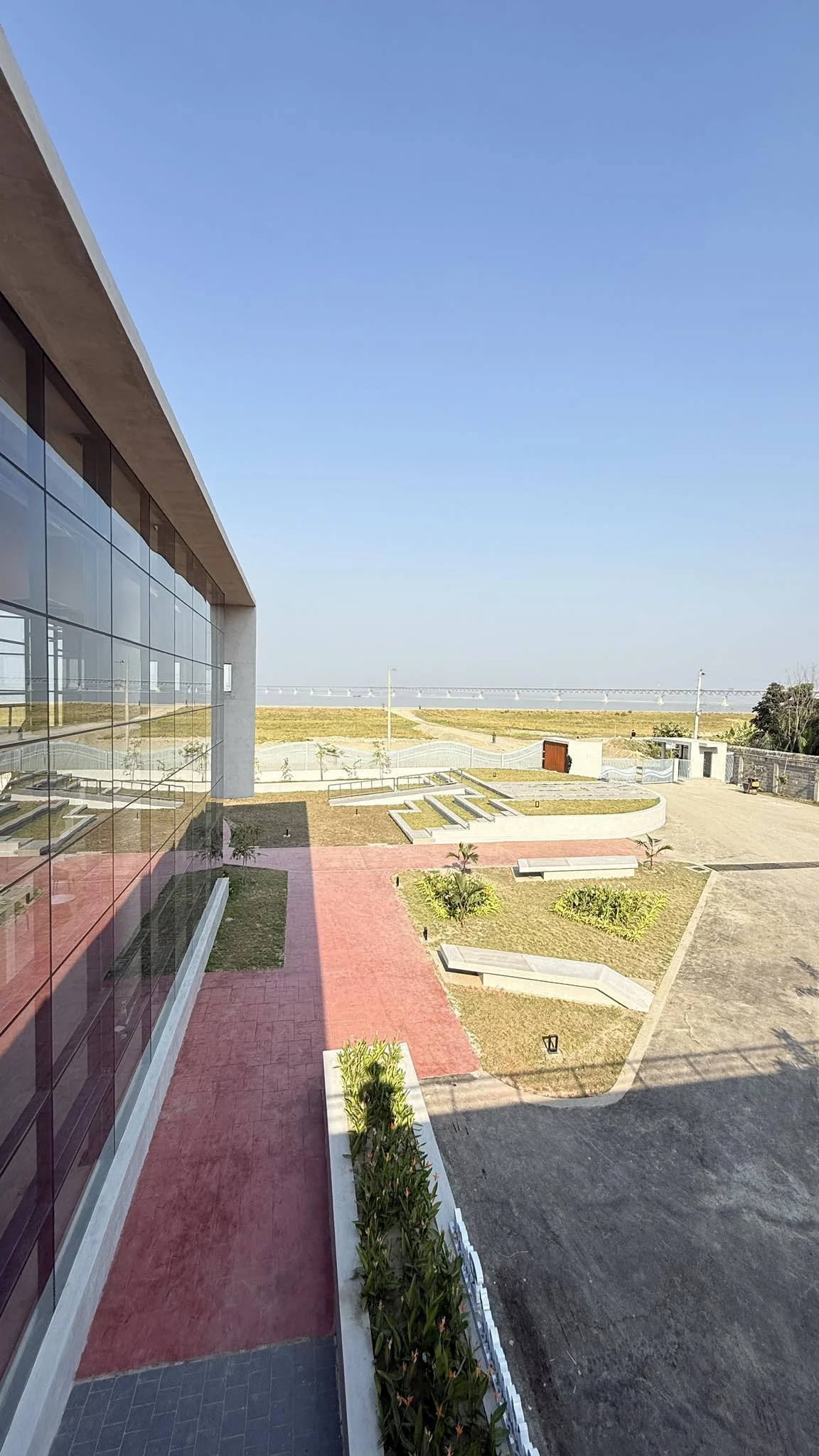

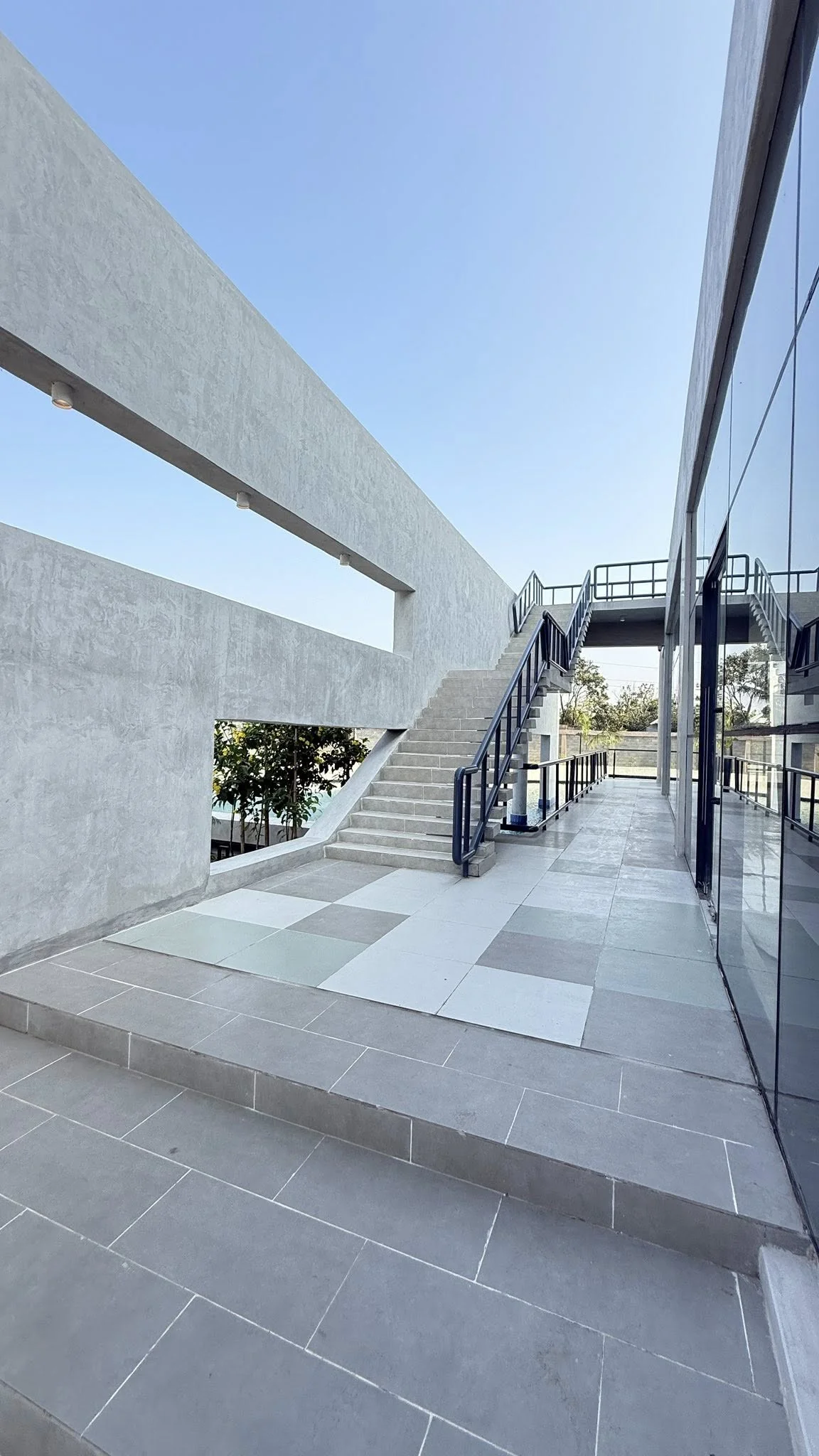

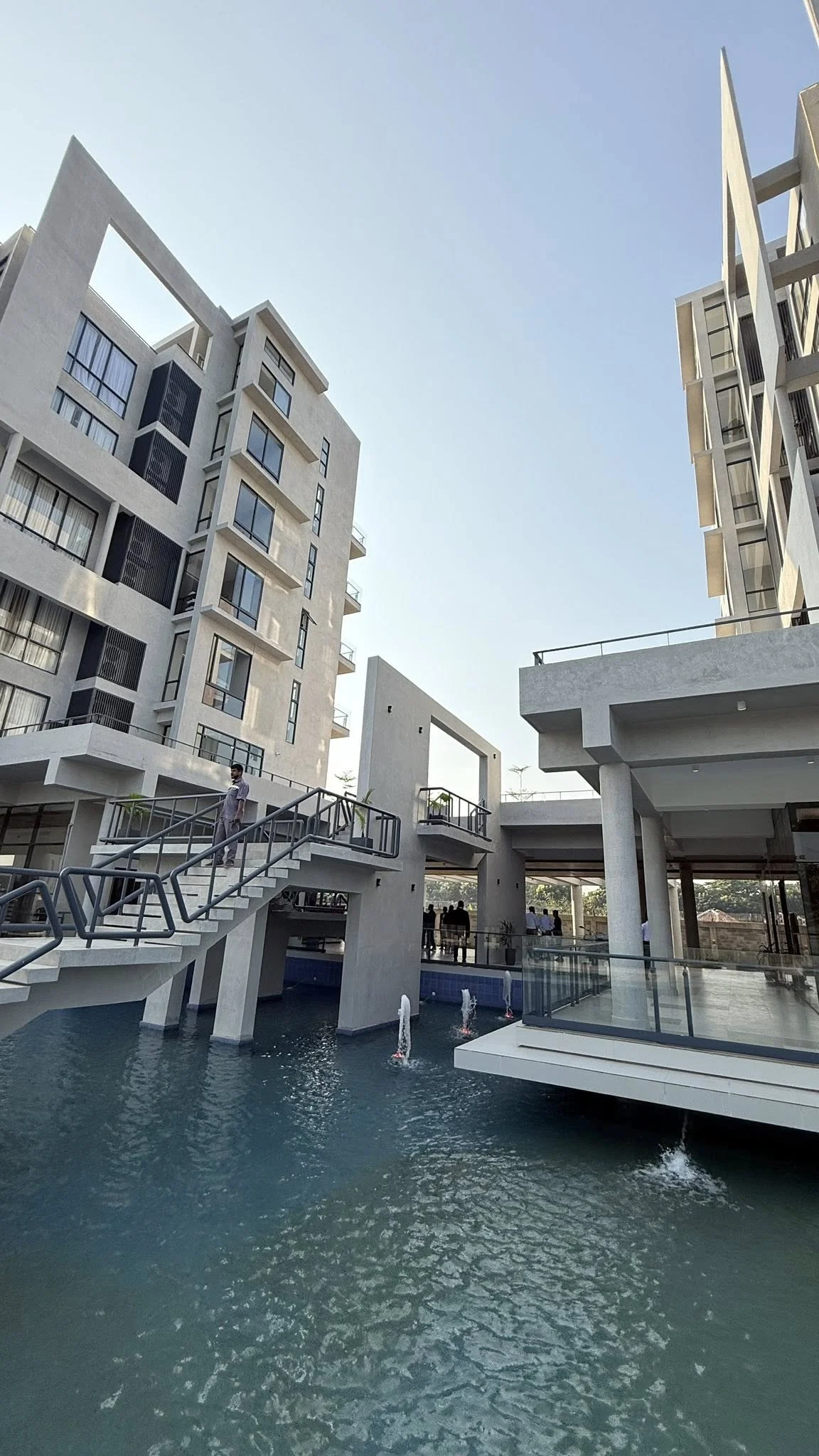

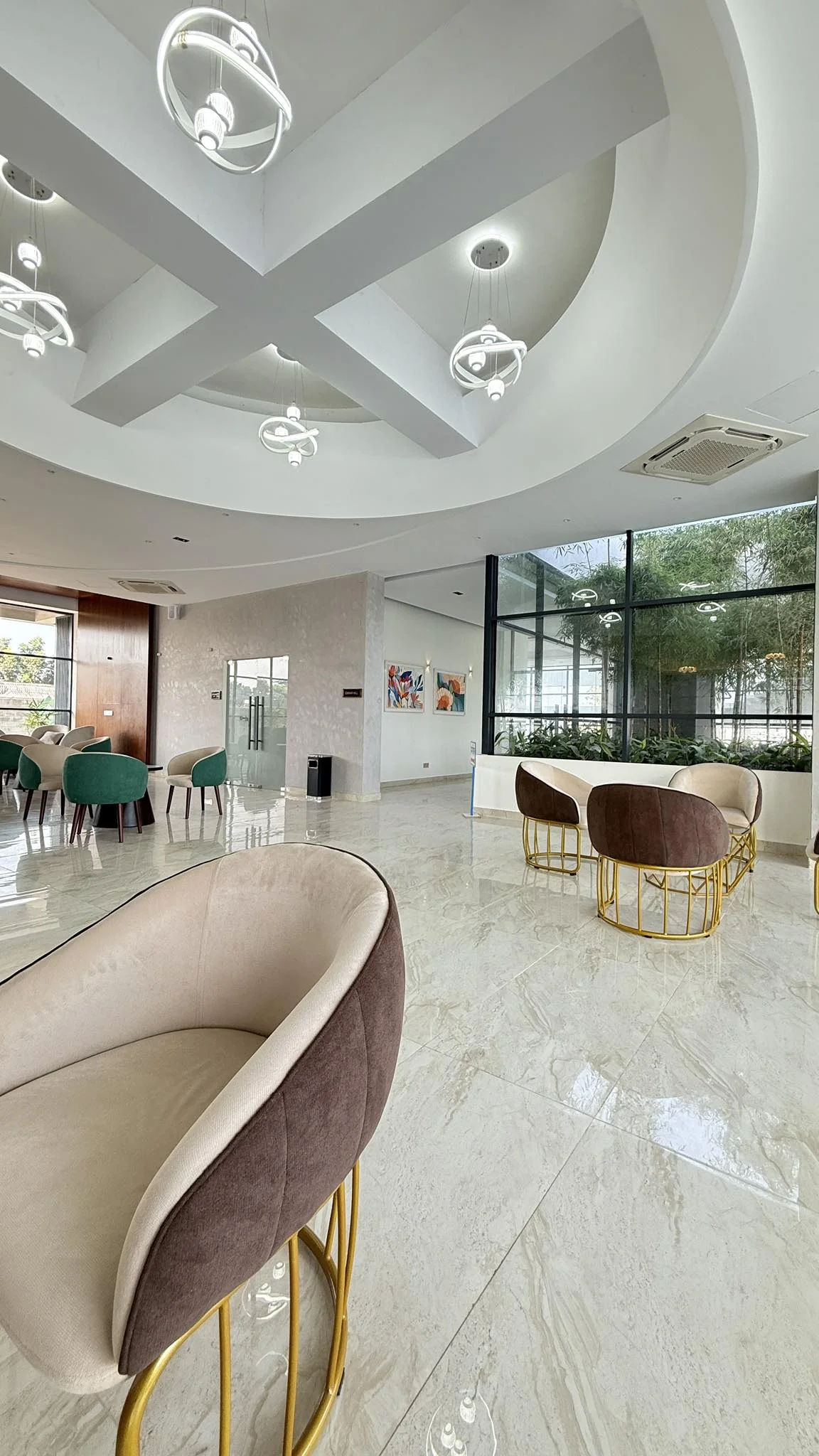

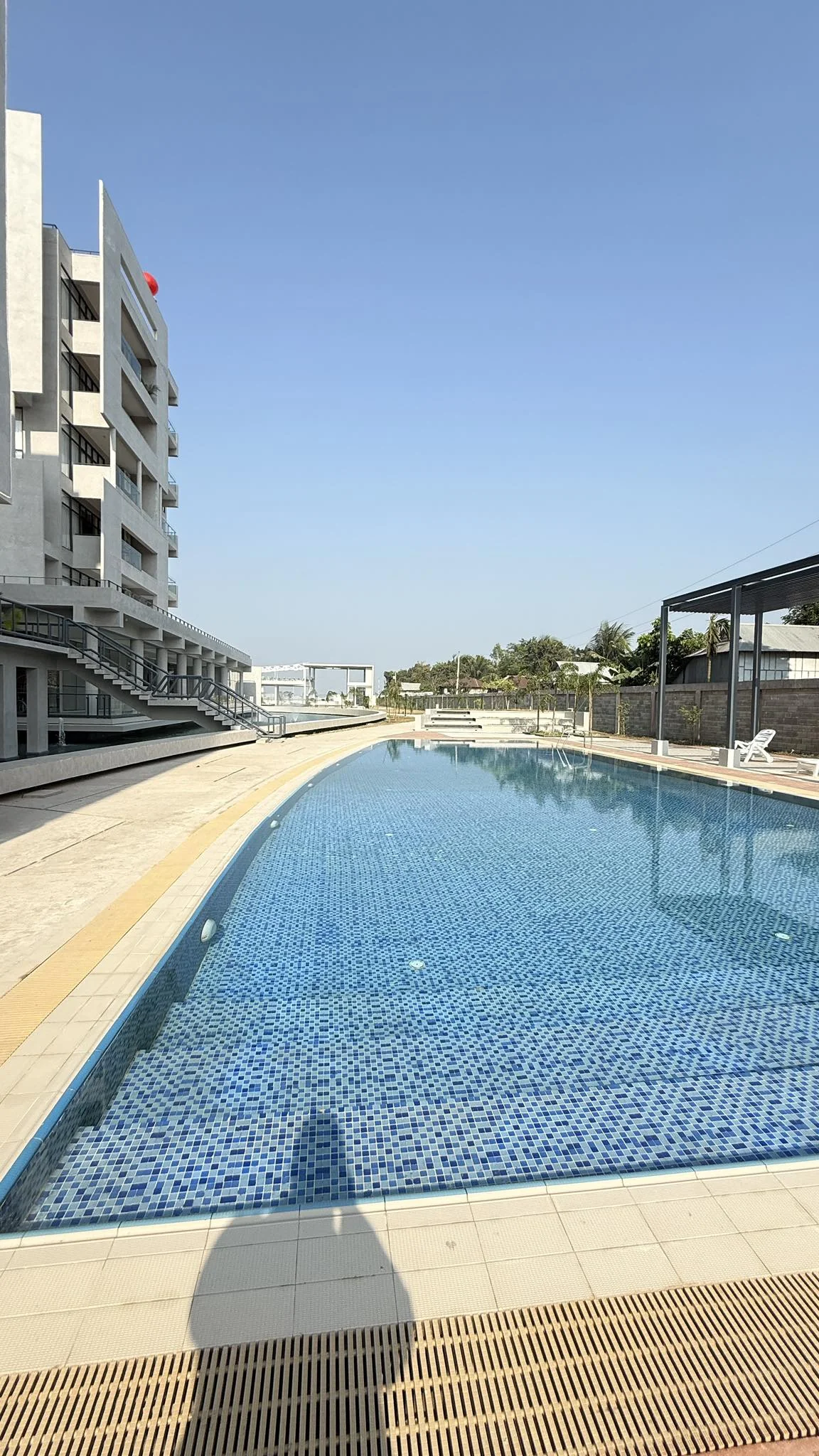

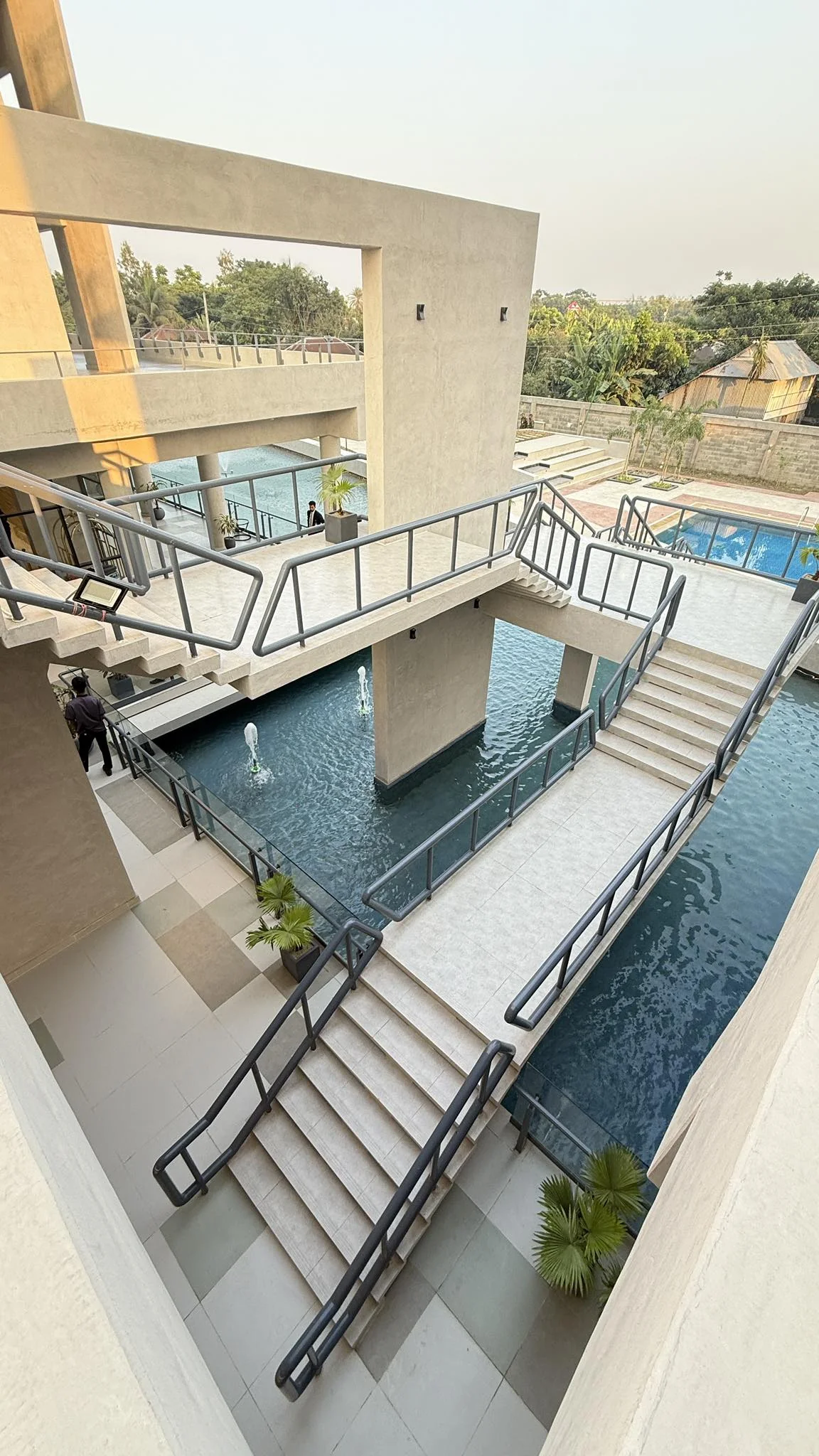

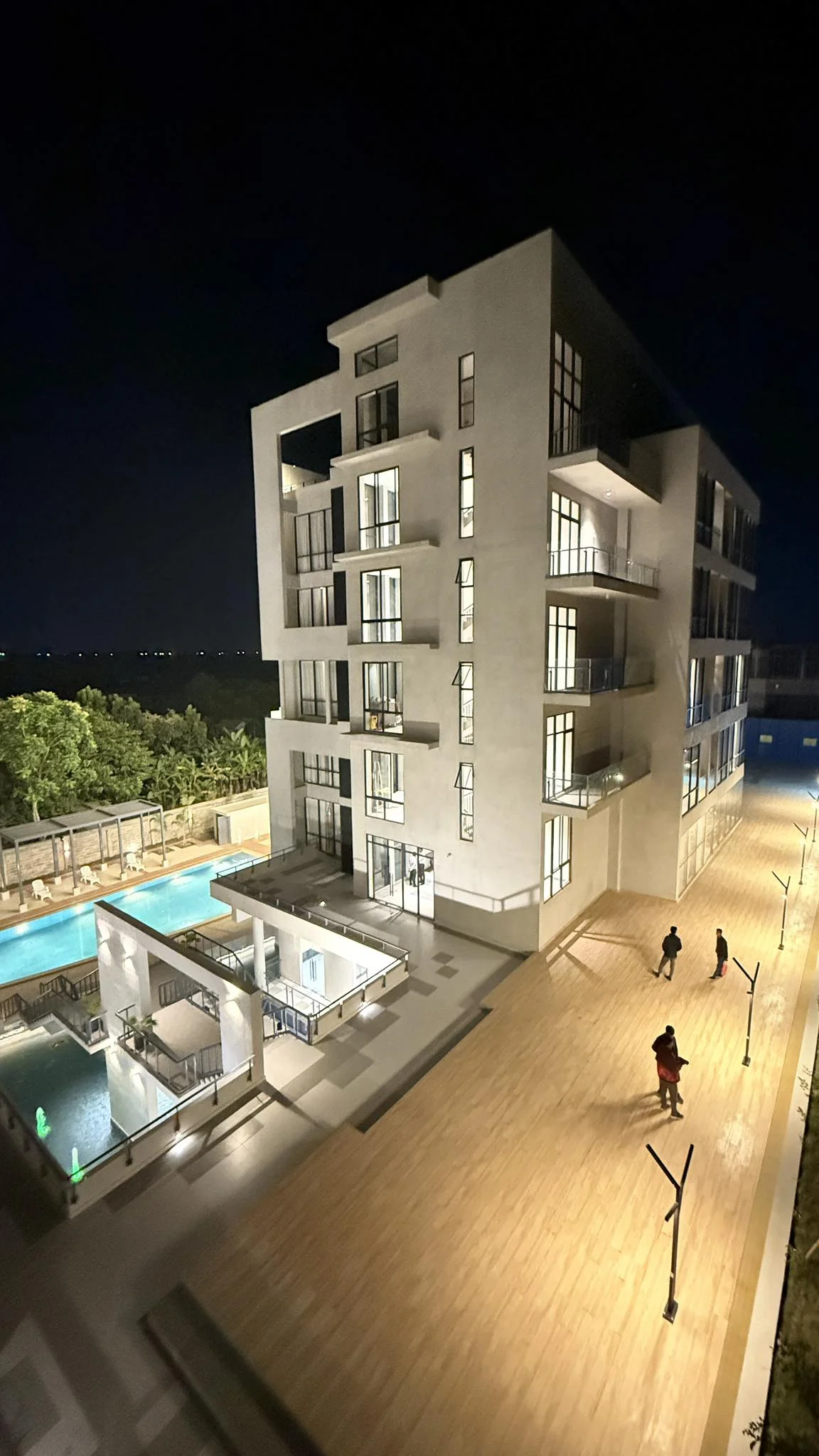

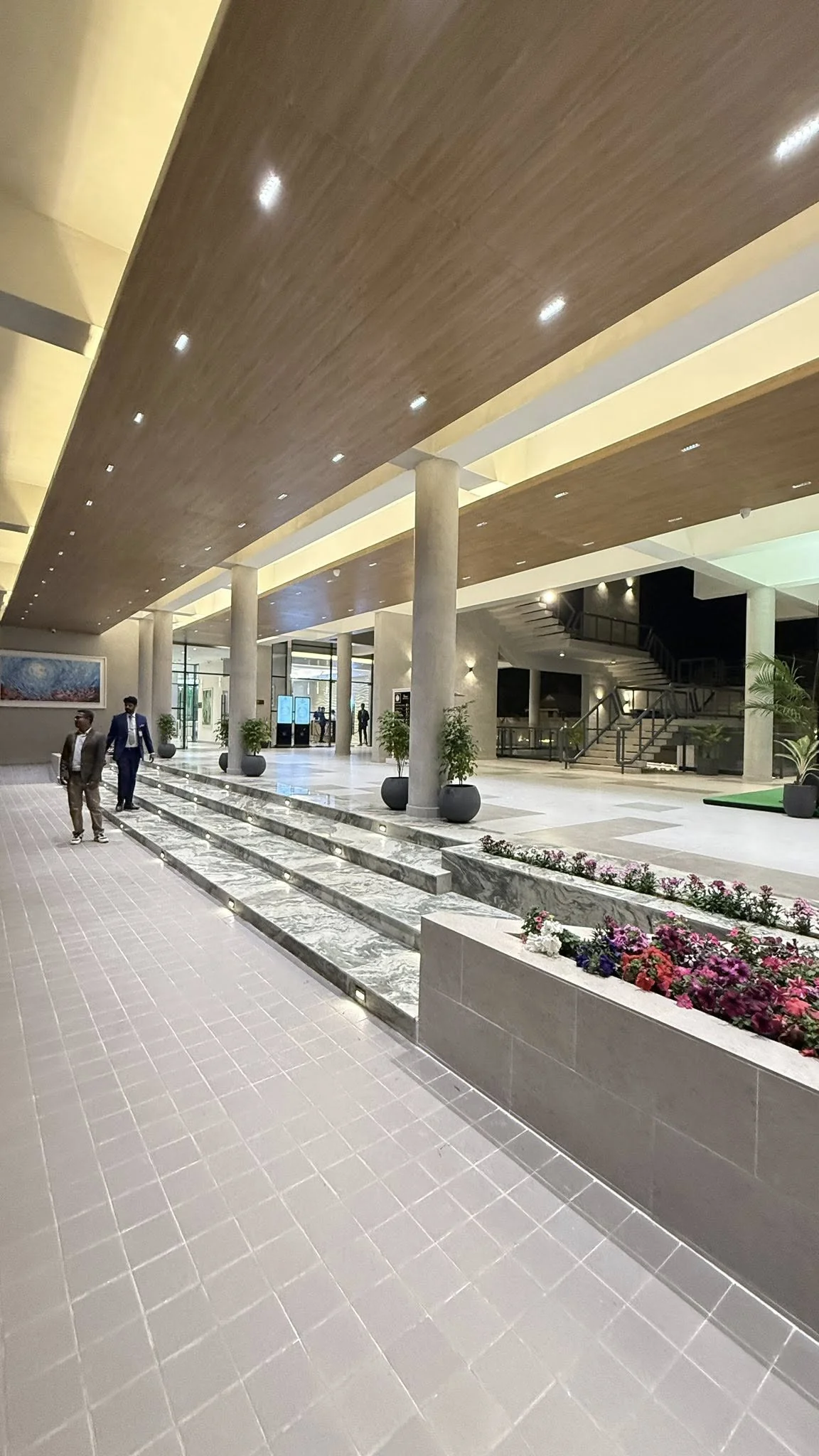

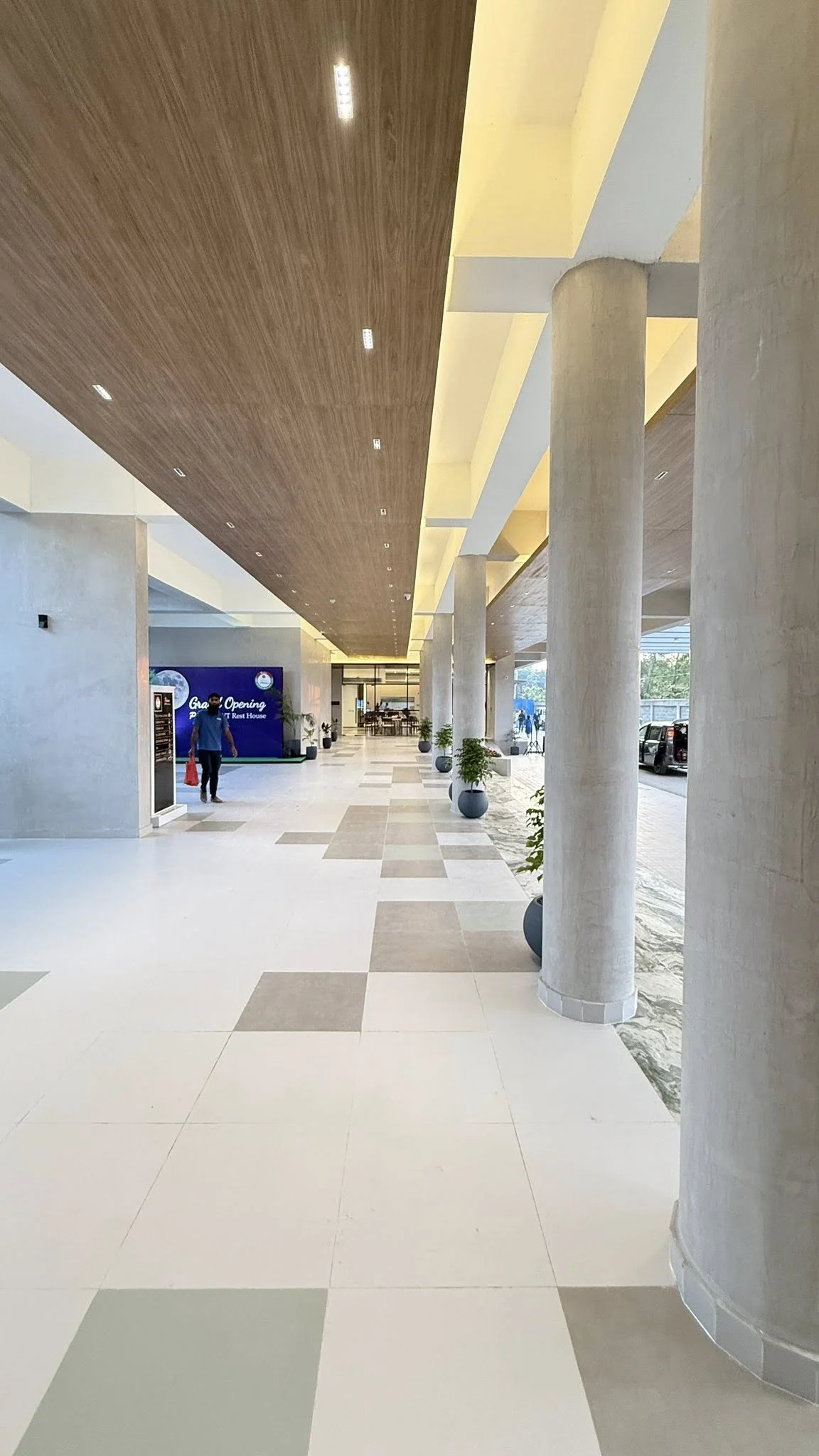

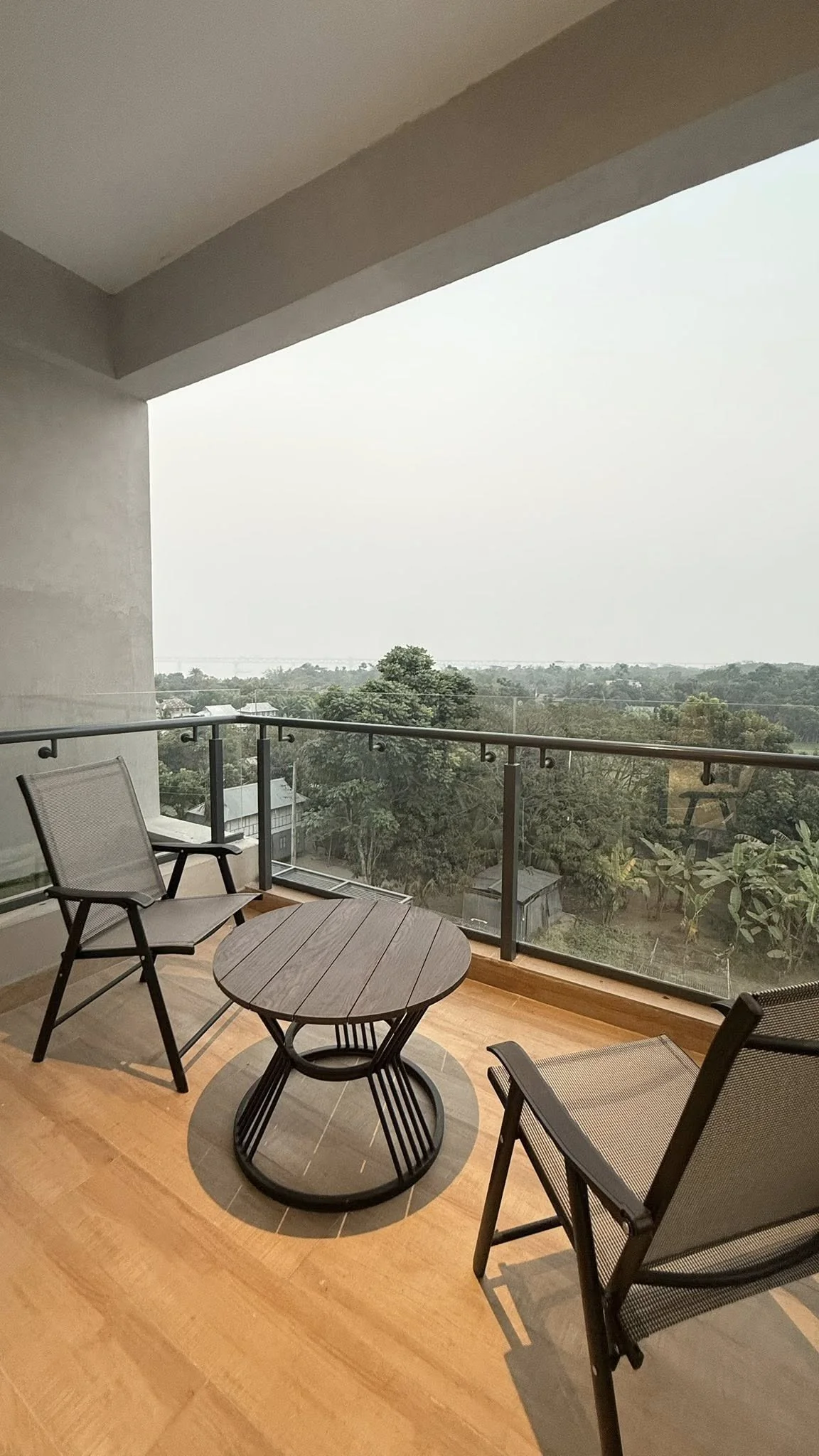

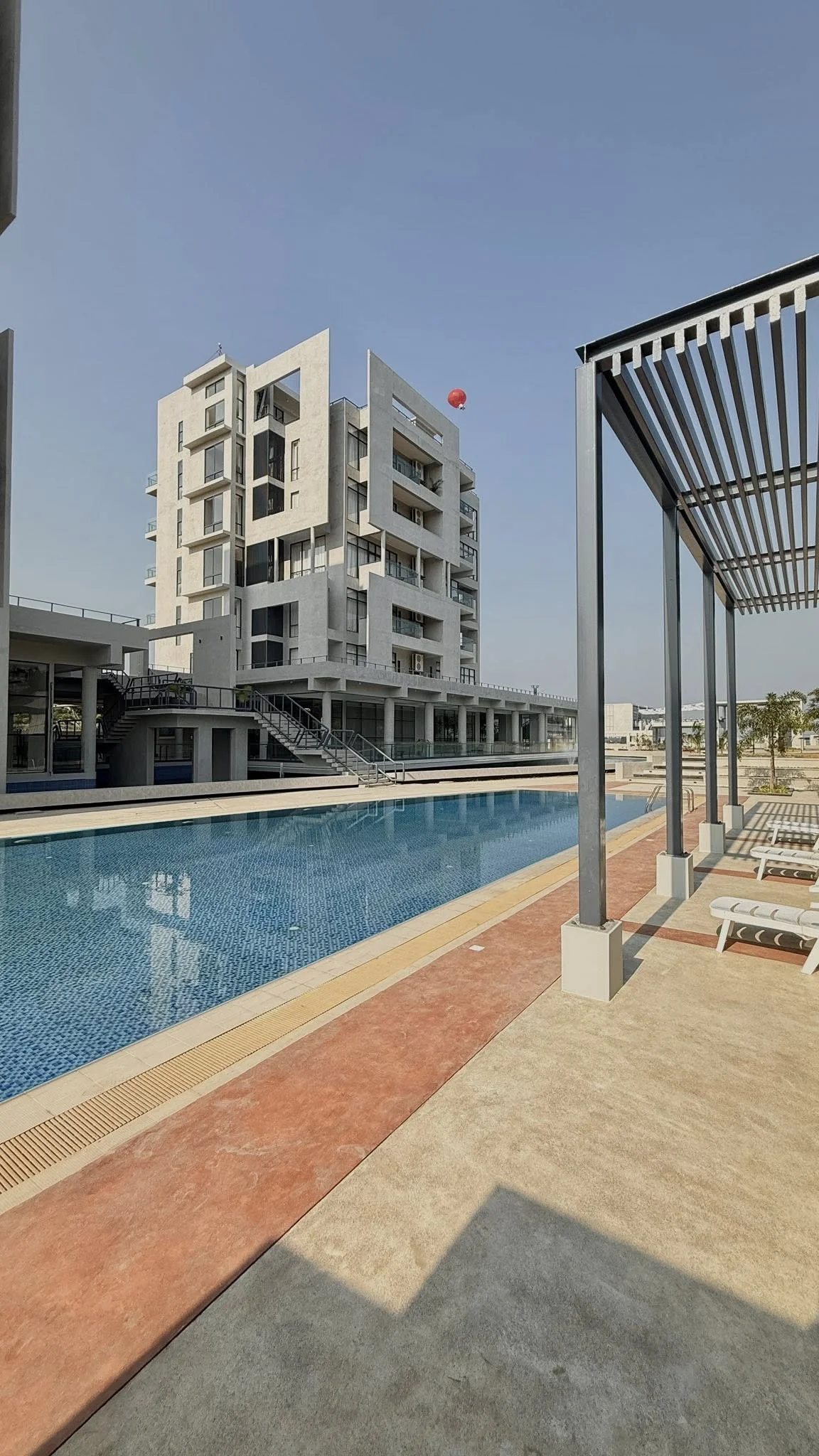

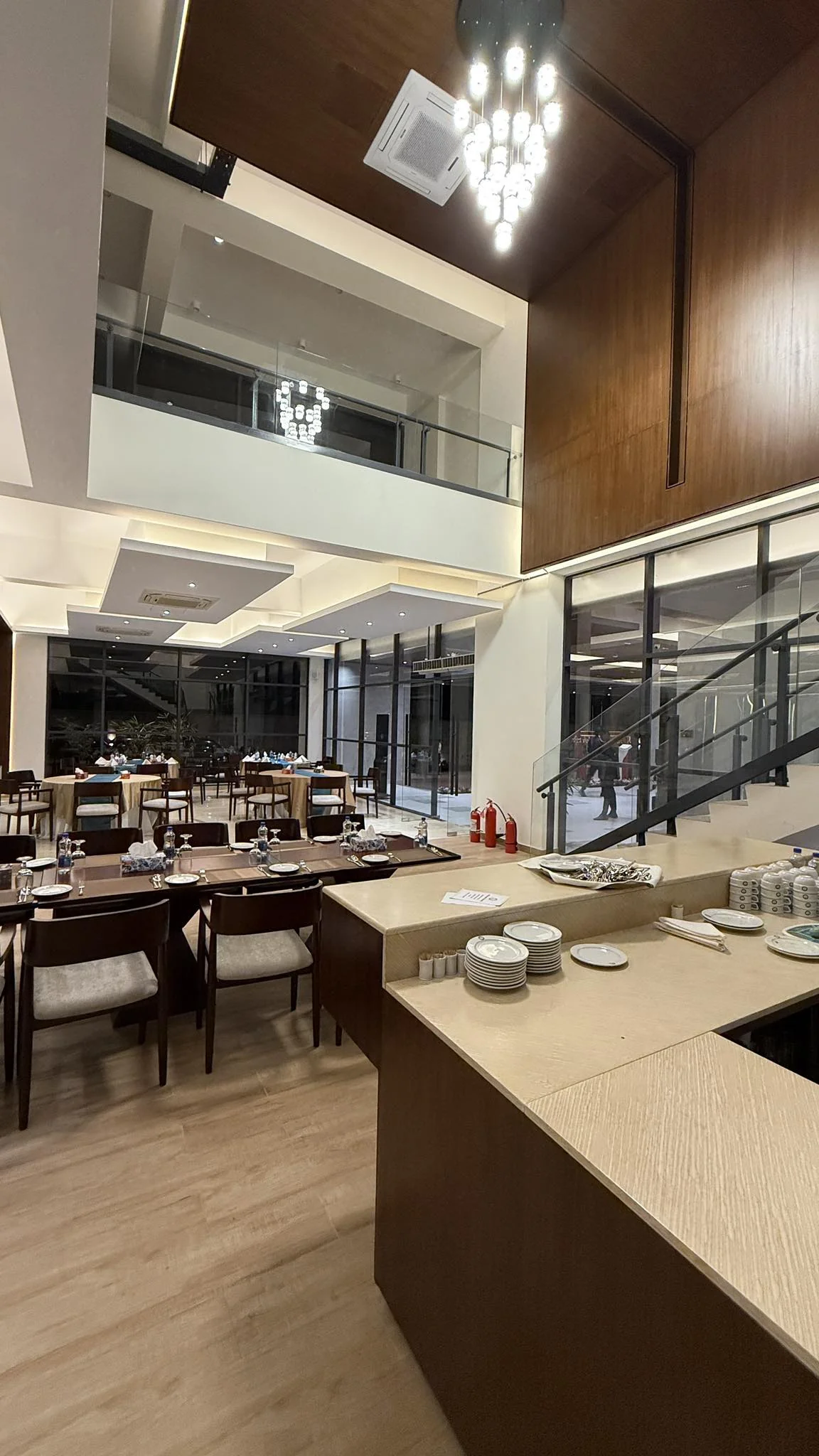

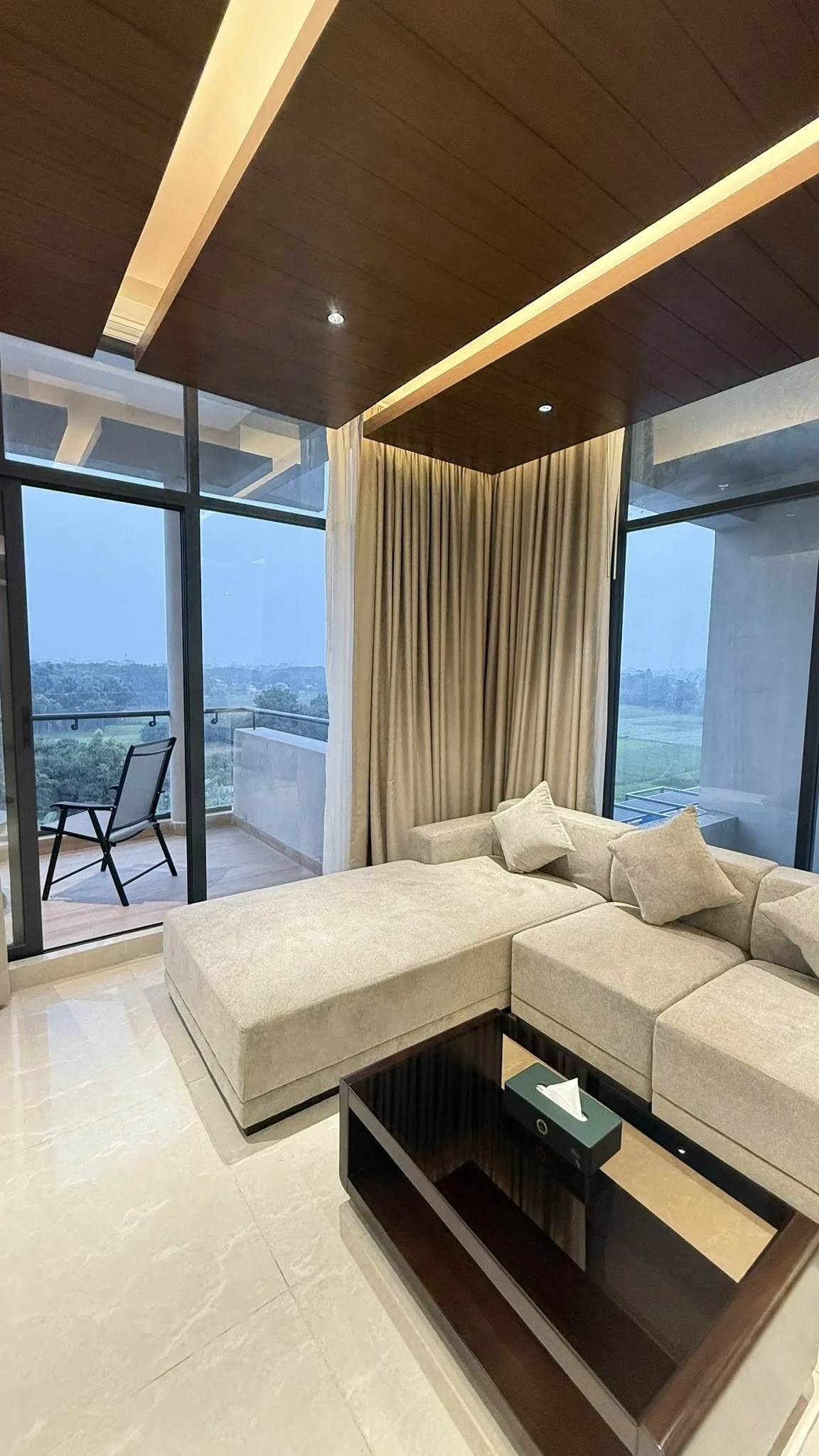

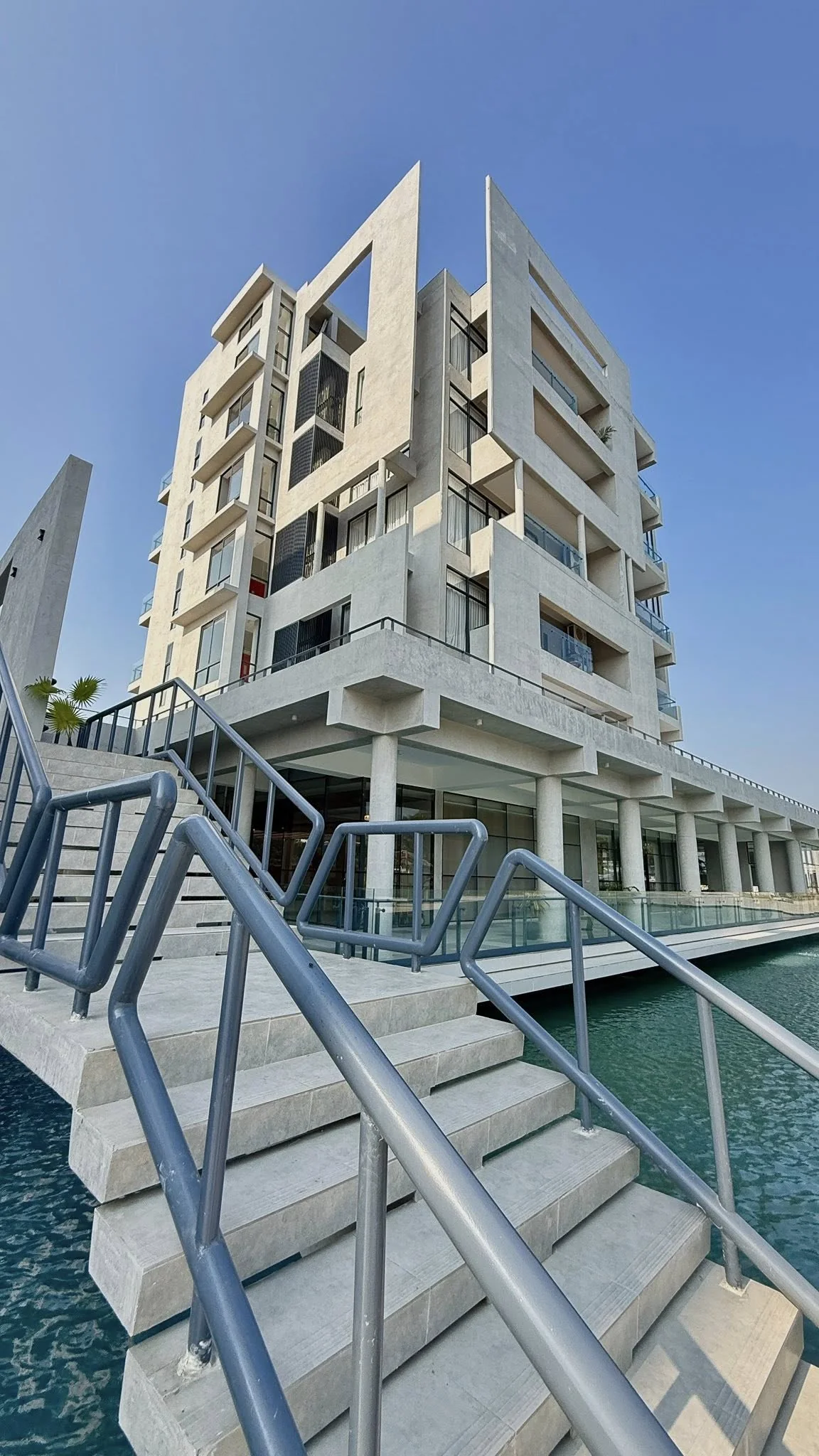

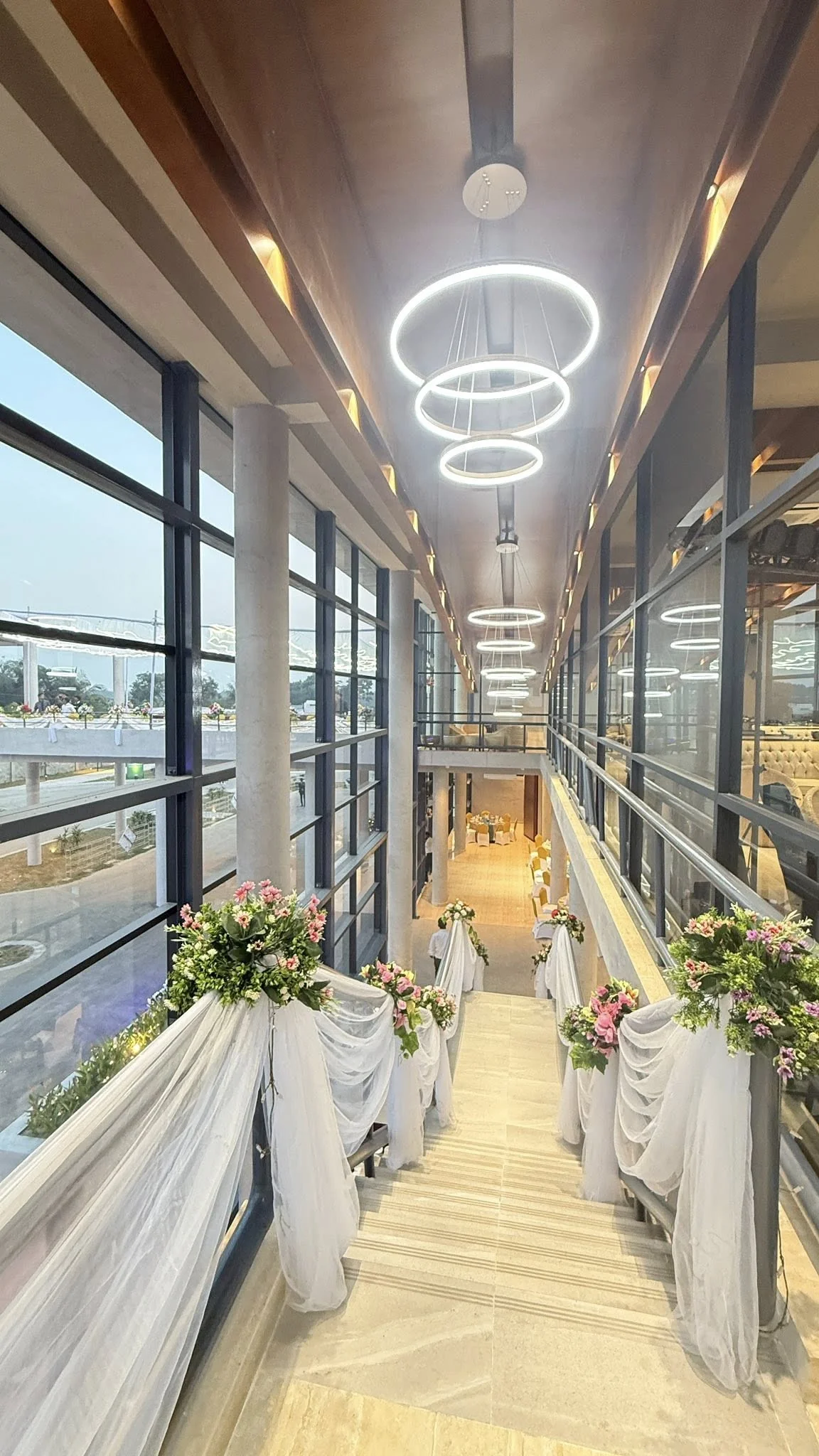

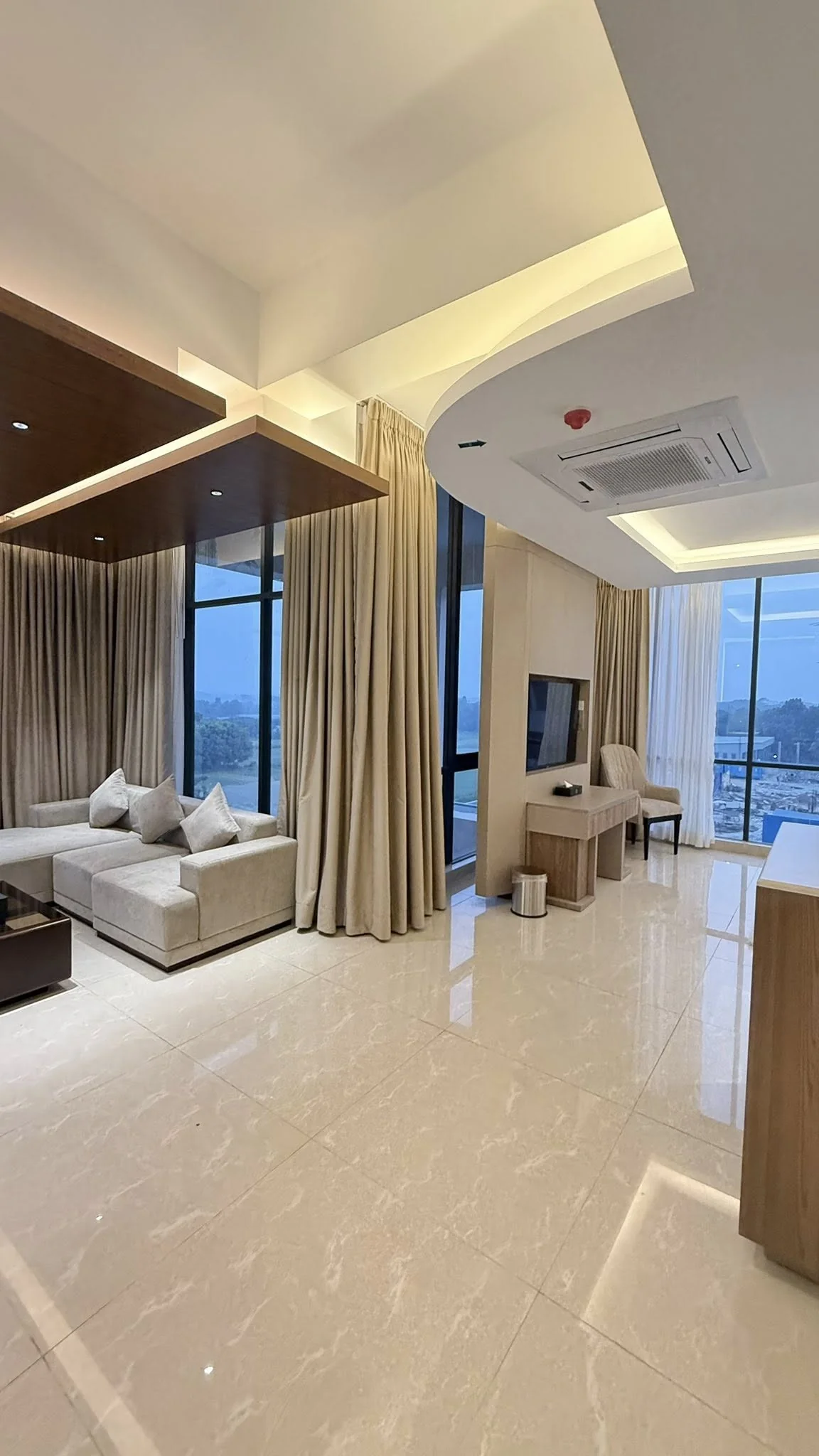

The handover. Phase 1 was inaugurated by the Army Welfare Trust at the close of 2025. The photographs below are taken on site after completion, with the resort dressed for its grand opening: the elevated terrace lit at dusk, the swimming pools live and reflective, the lobby and dining rooms in operation, the guest suites finished and furnished. Five years of work, end to end, from concept design to BIM documentation to a building standing on the bank of the Padma.

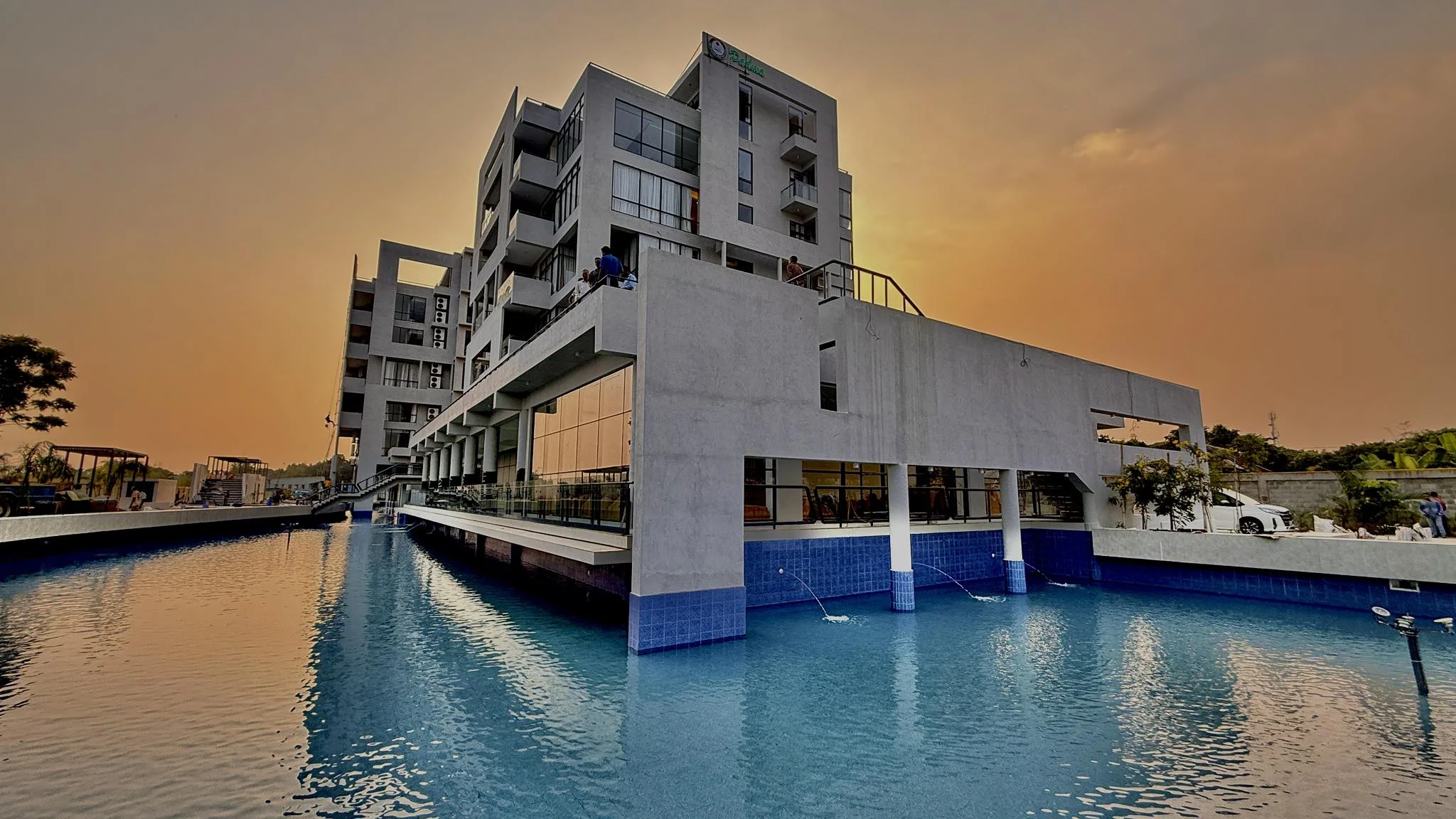

The completed resort at sunset: the G+5 accommodation block rising above the elevated terrace, the swimming pool extending into the foreground reflecting a golden sky, the building's drop-off porch and pool deck visible at plaza level Pool and Building at Sunset · Phase 1 Inauguration
