Architects Design Studio · Dhaka · 2019–2021

Maer Bari

Nikunja Residence Vernacular Reinterpretation Uthan Typology Golden Ratio Climatic Design

Mother's house. Maer Bari is a multi-storey family residence in Nikunja, Dhaka: a site shaped by the airport's approach corridor, summer and winter breezes, neighbouring residential grain, and views that needed both capturing and filtering.

The design draws from the traditional Bangladeshi village home, where formal, private, service, and informal spaces are arranged around a central uthan (courtyard). That spatial logic, hierarchical yet permeable, communal yet protected, is reinterpreted for a dense urban plot. The Golden Ratio structures the proportional relationships between rooms, openings, and the courtyard itself.

Concrete block walls left exposed, timber-framed pitched roofs, jali screens, and deep verandahs give the house its material identity: robust, ventilated, and rooted in the construction culture of the region.

Programme Multi-storey family residence
Location Nikunja, Dhaka, Bangladesh
Firm Architects Design Studio
Principal: Ar. Sayeedul Hasan Rana
Role Design Architect
Year 2019–2021

Exterior

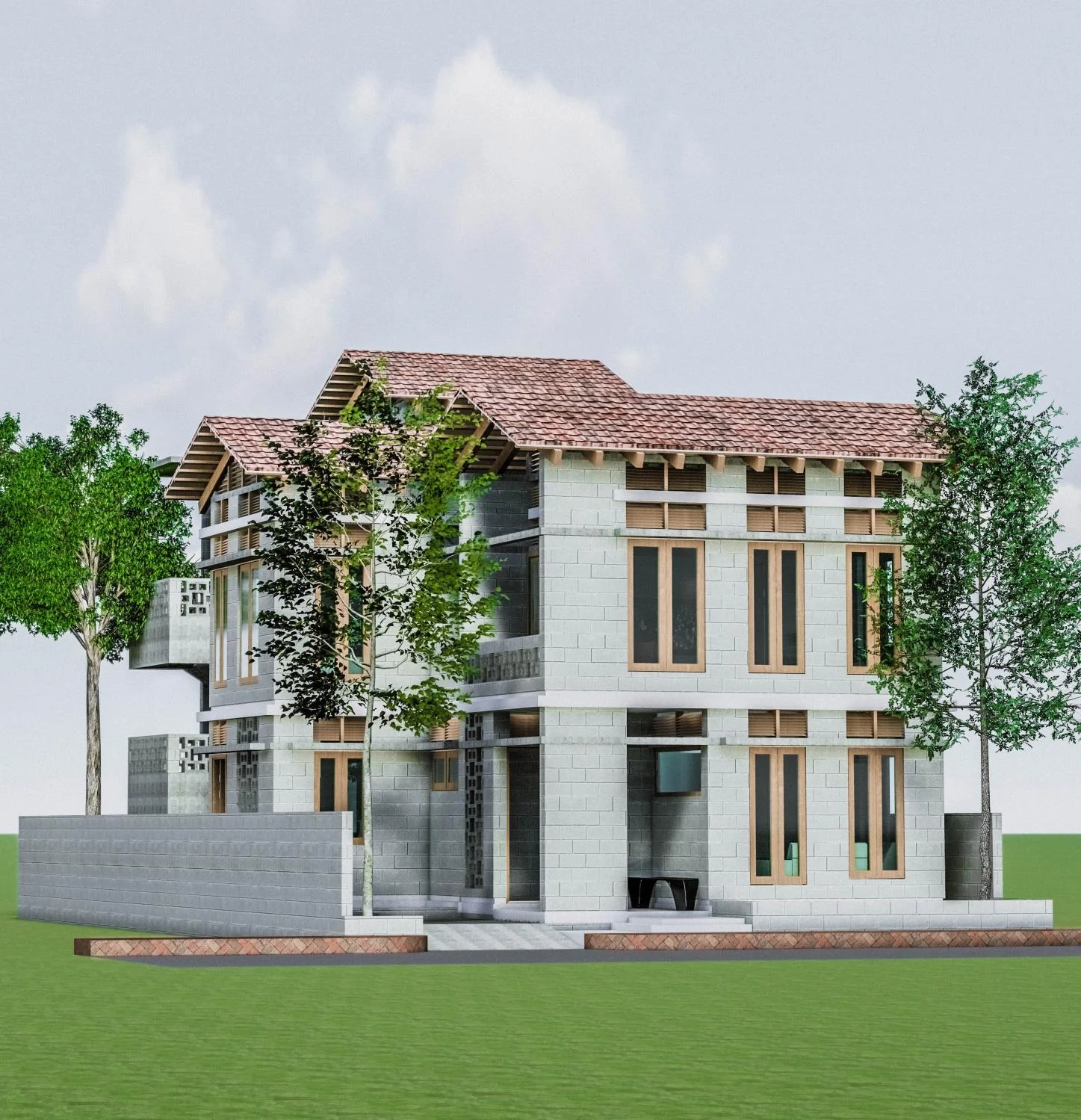

Maer Bari front elevation

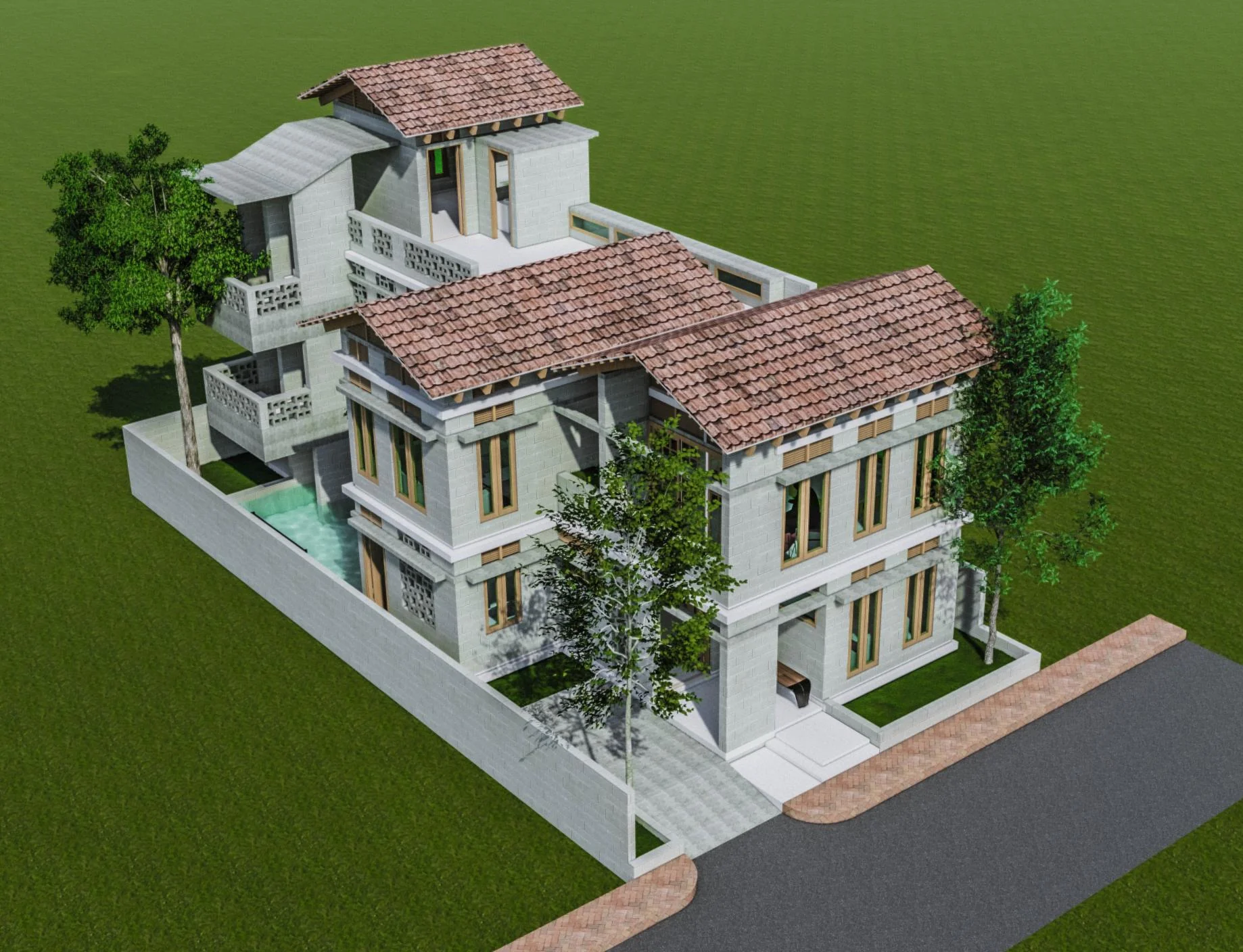

Aerial view from front-right showing pitched roof and pool

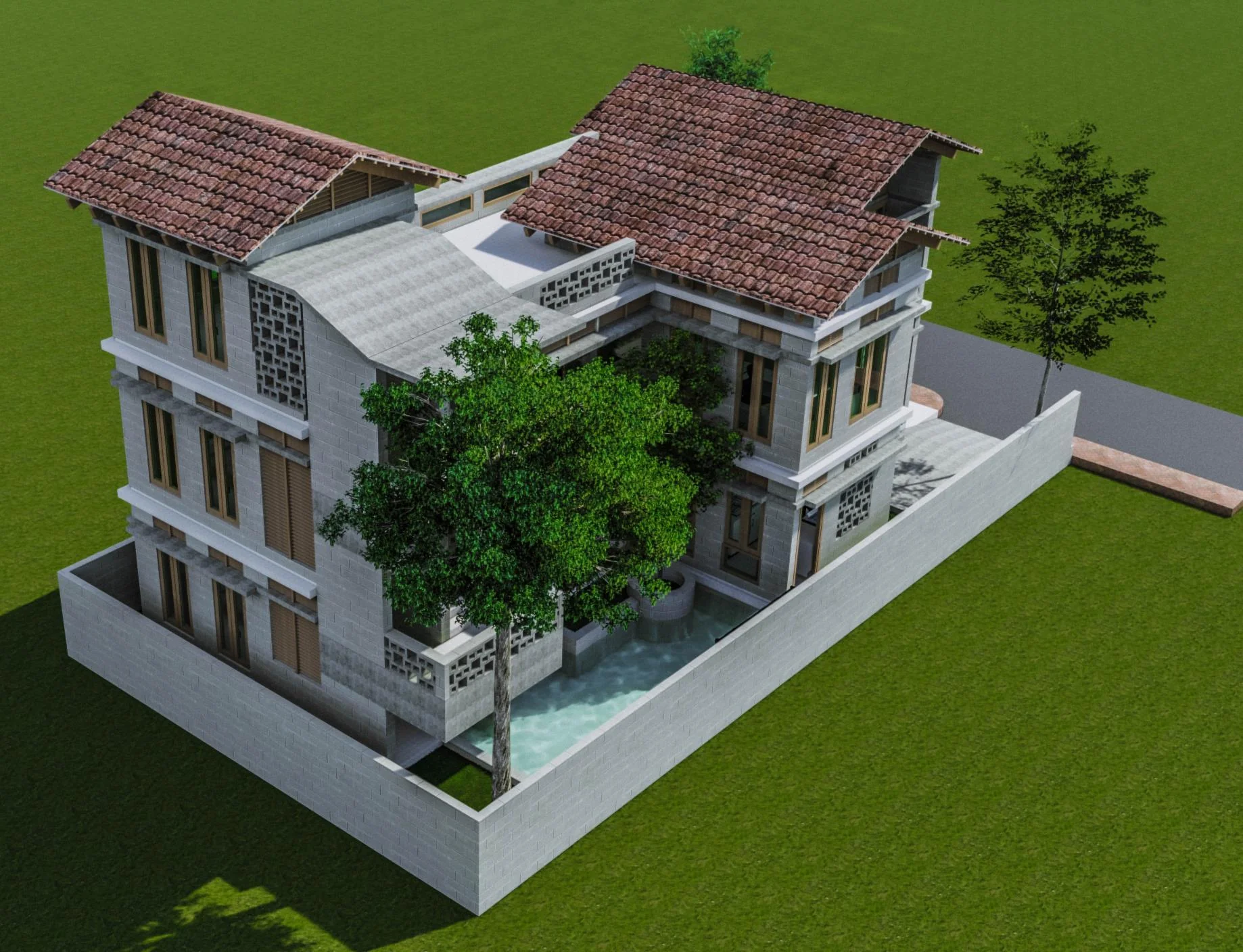

Aerial view from rear showing courtyard and water feature

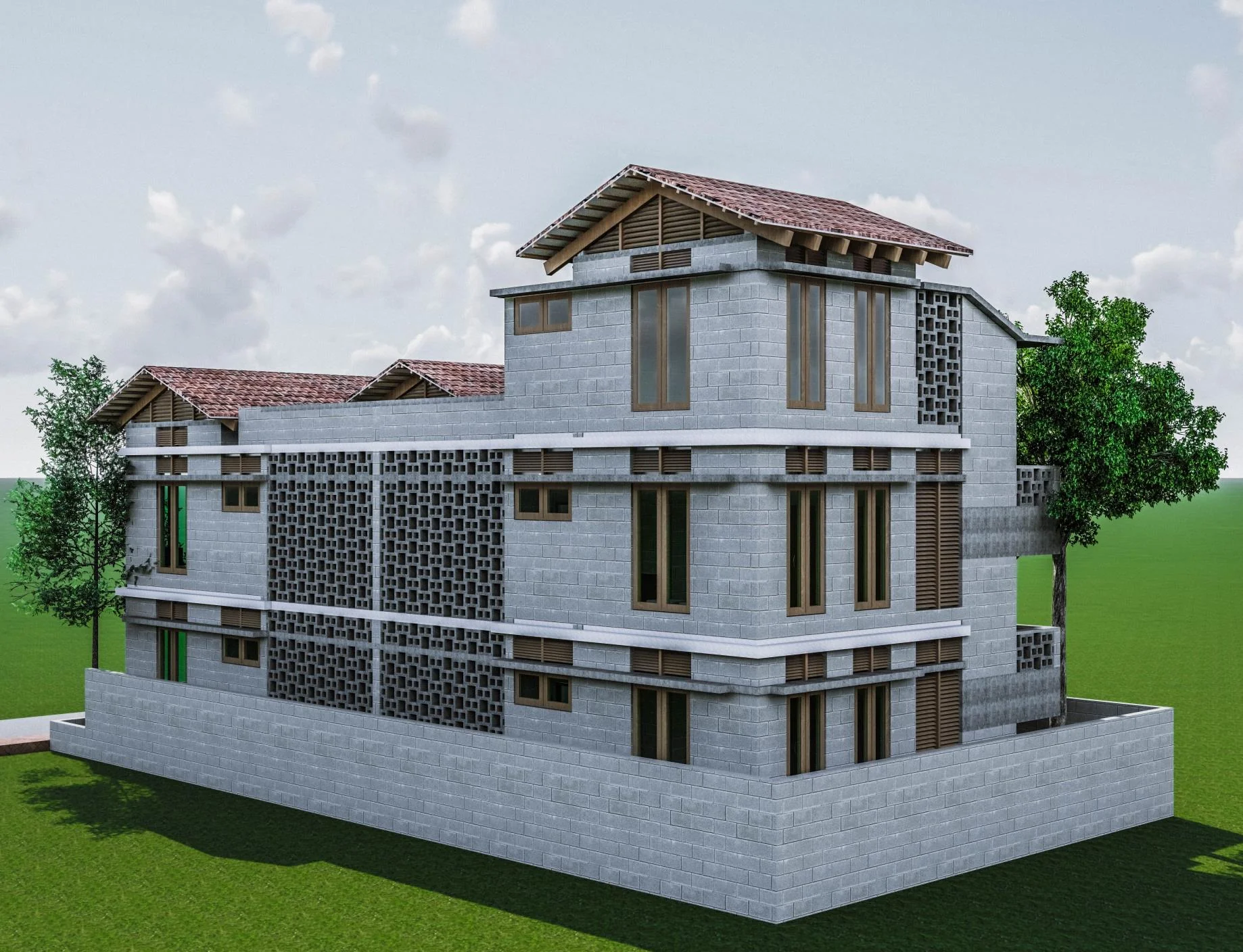

Rear facade with jali screens and timber louvers

Interior

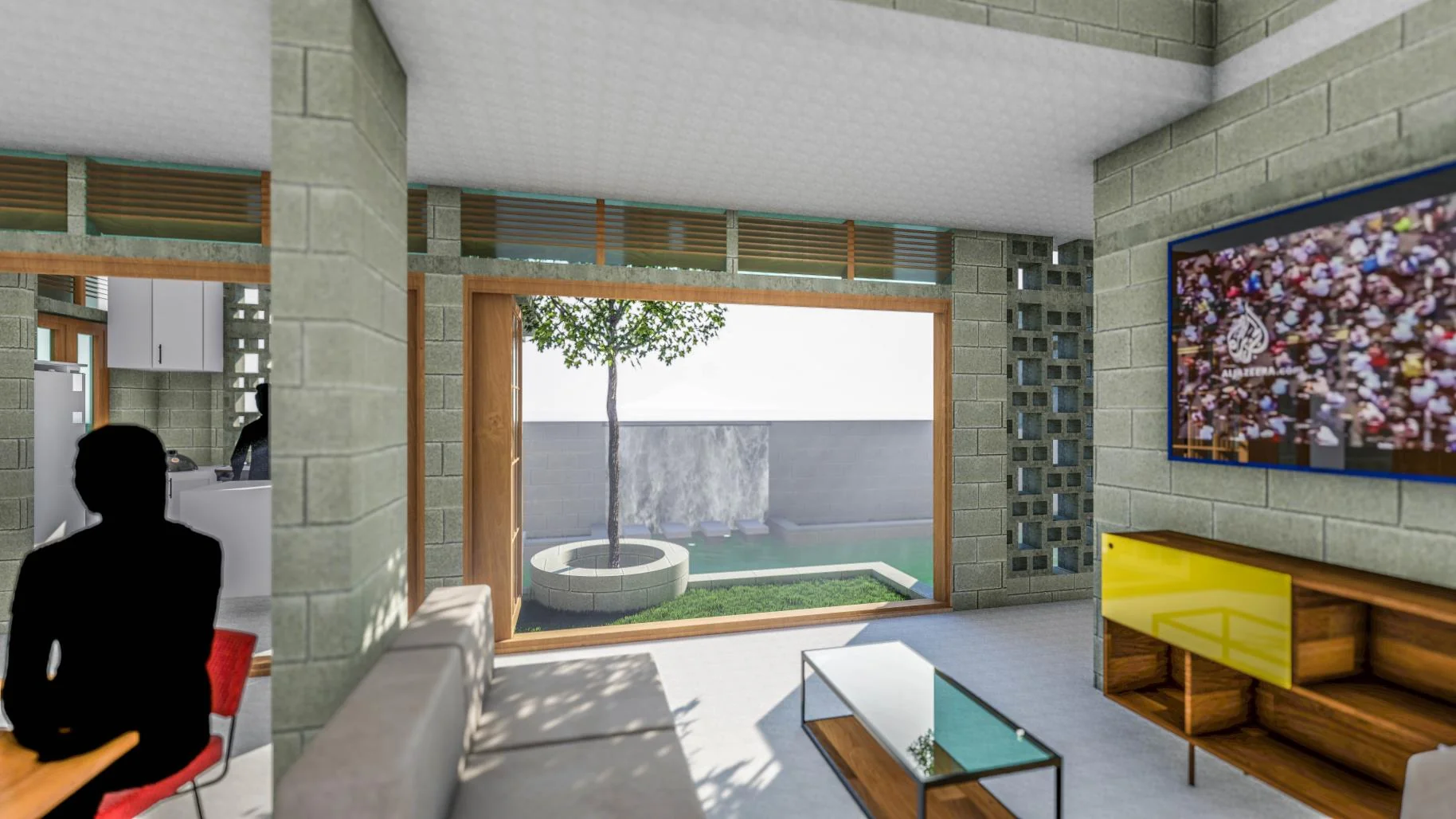

Living room looking toward courtyard water feature

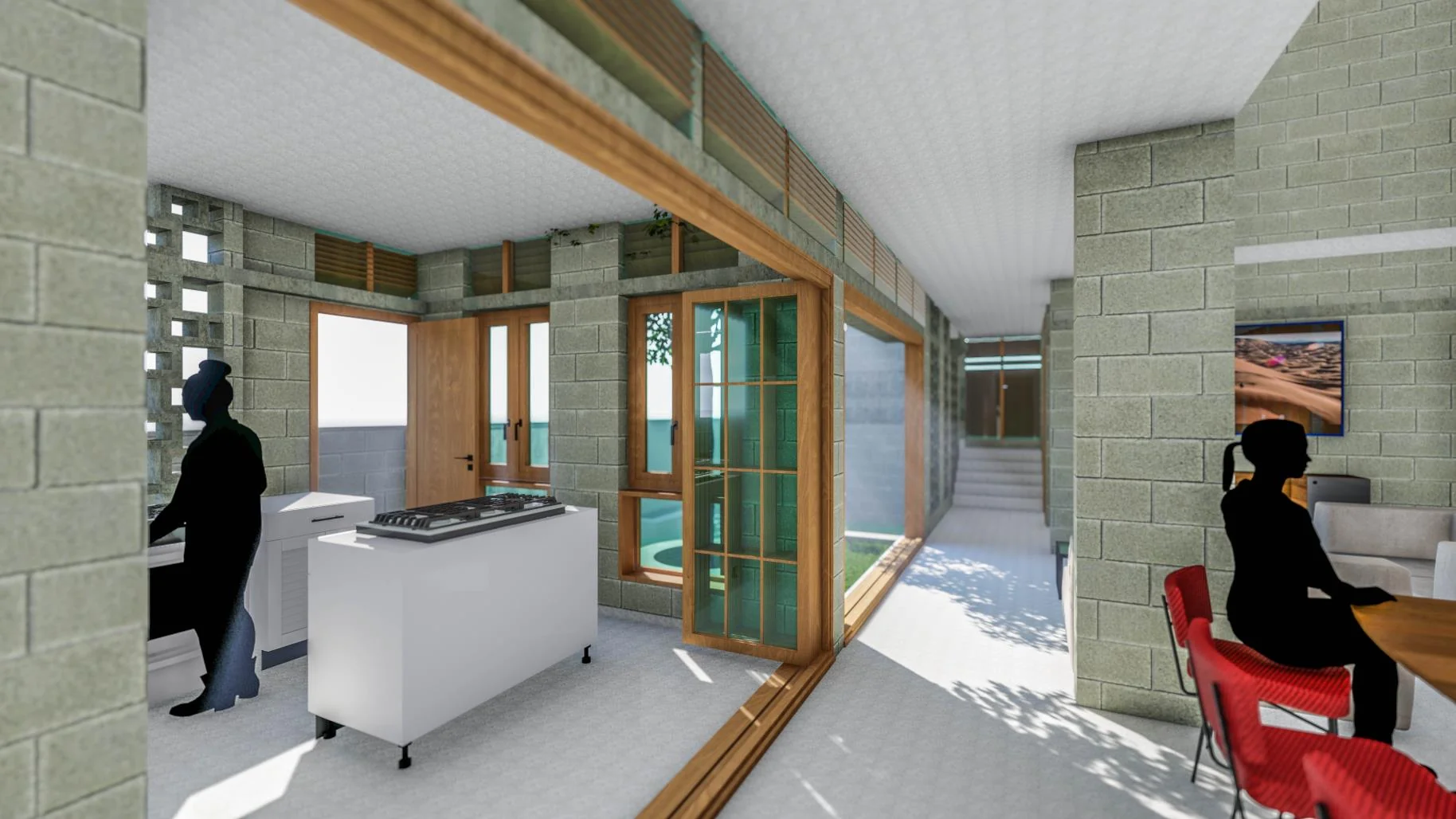

Kitchen and dining area with view toward pool

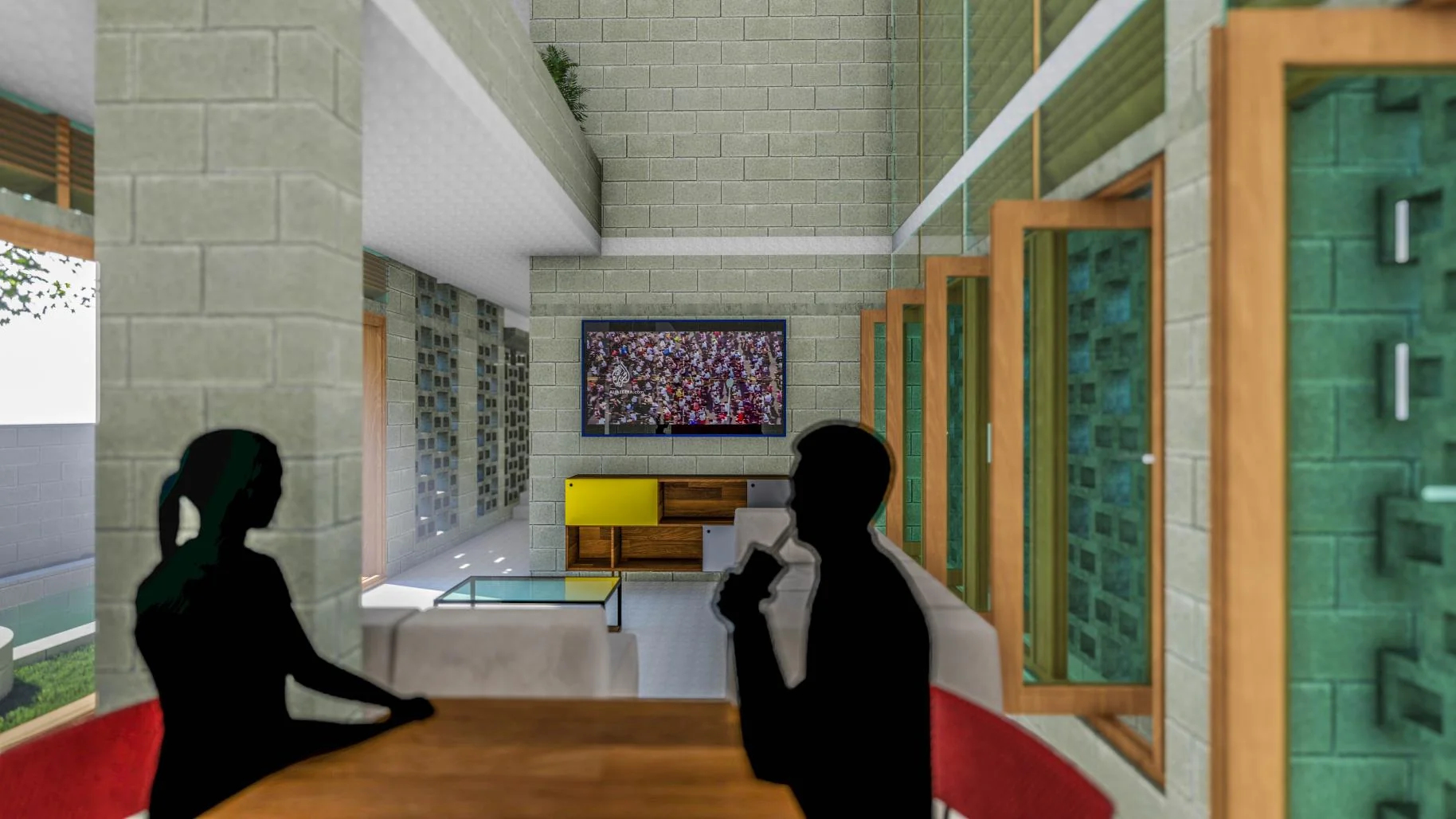

Living room with jali screen wall

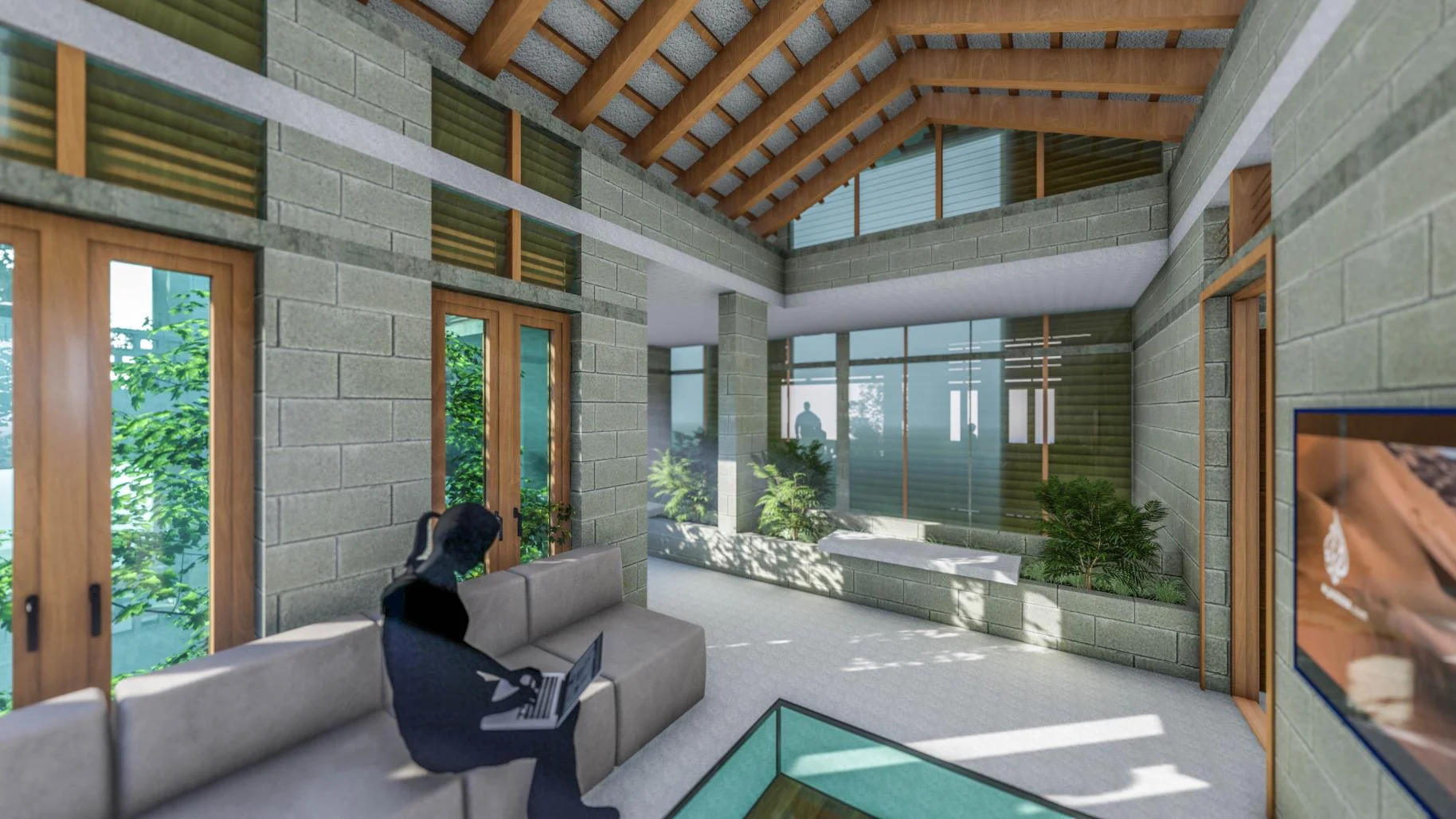

Upper floor sitting area with exposed timber roof structure

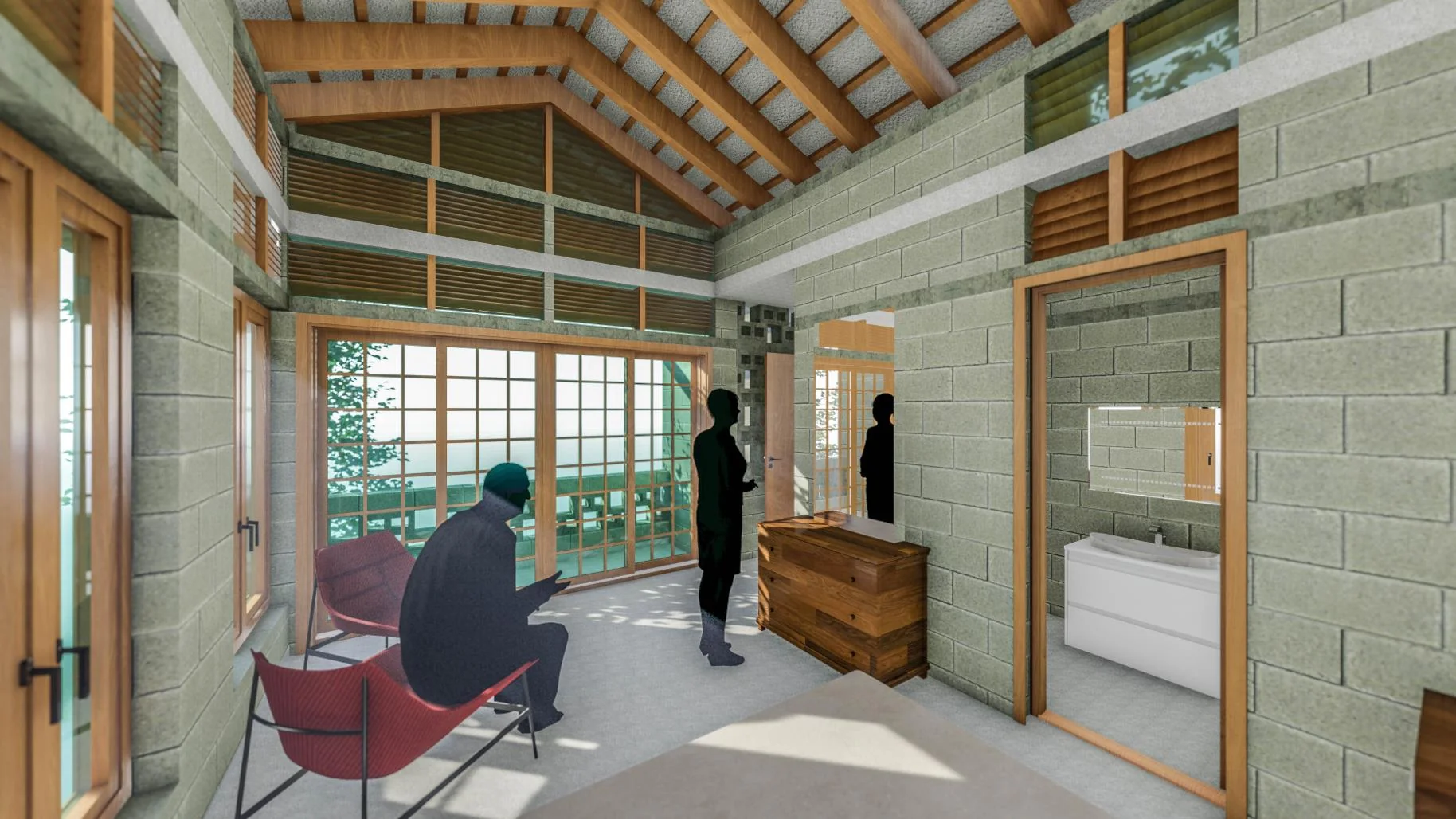

Bedroom with balcony and gridded timber screen

Plans

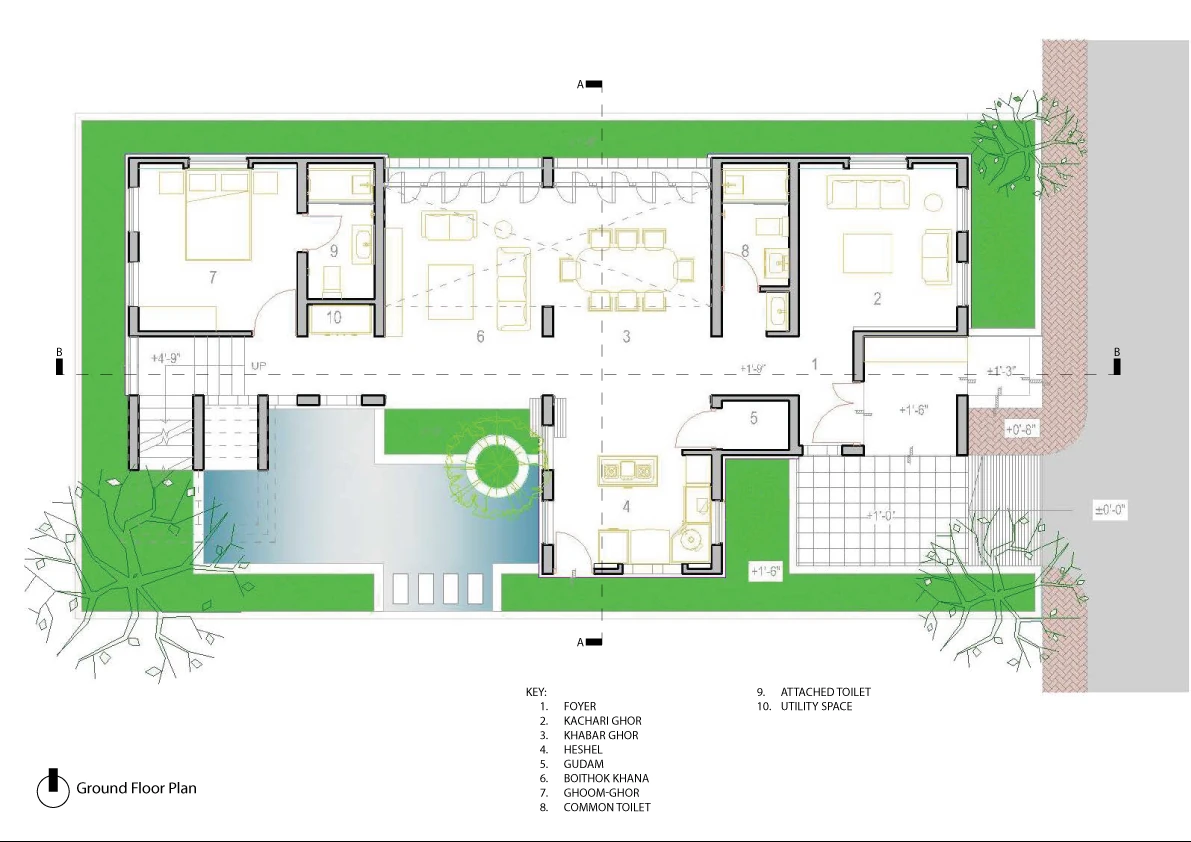

Ground floor plan

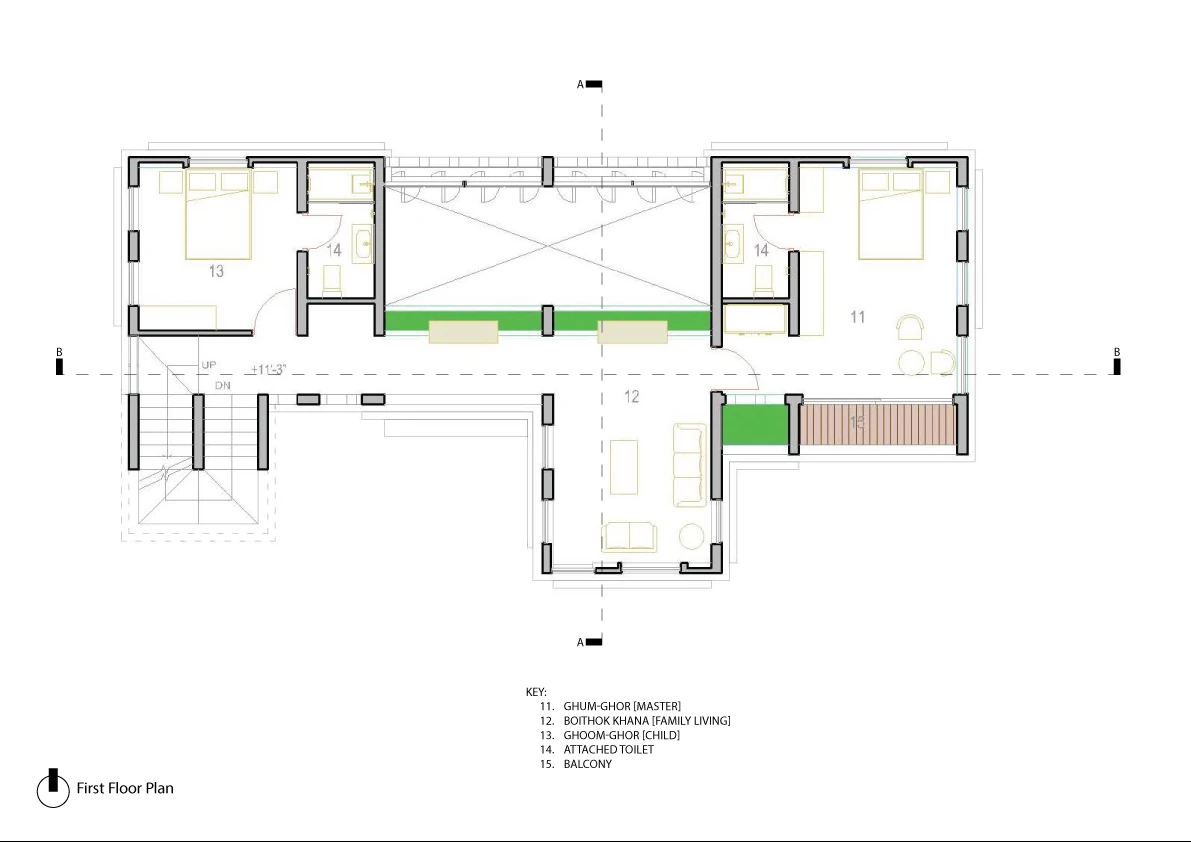

First floor plan

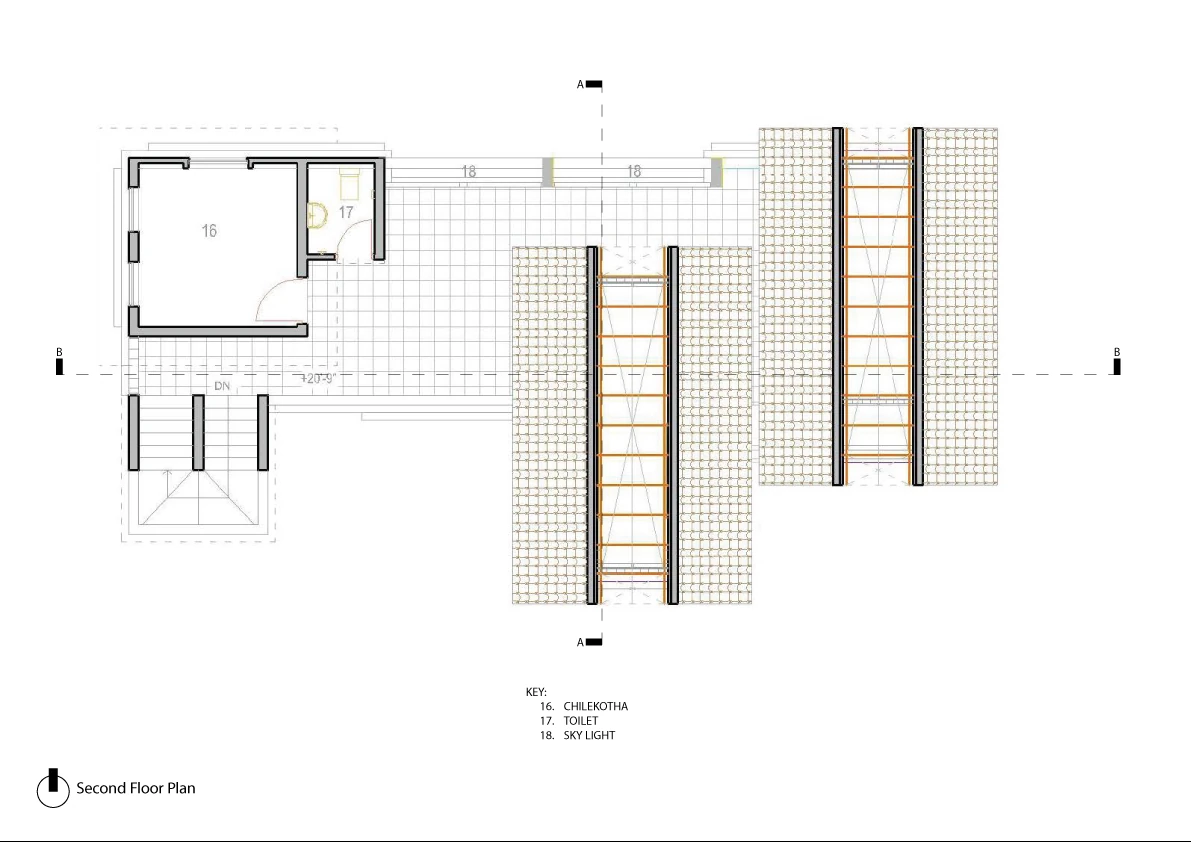

Second floor plan

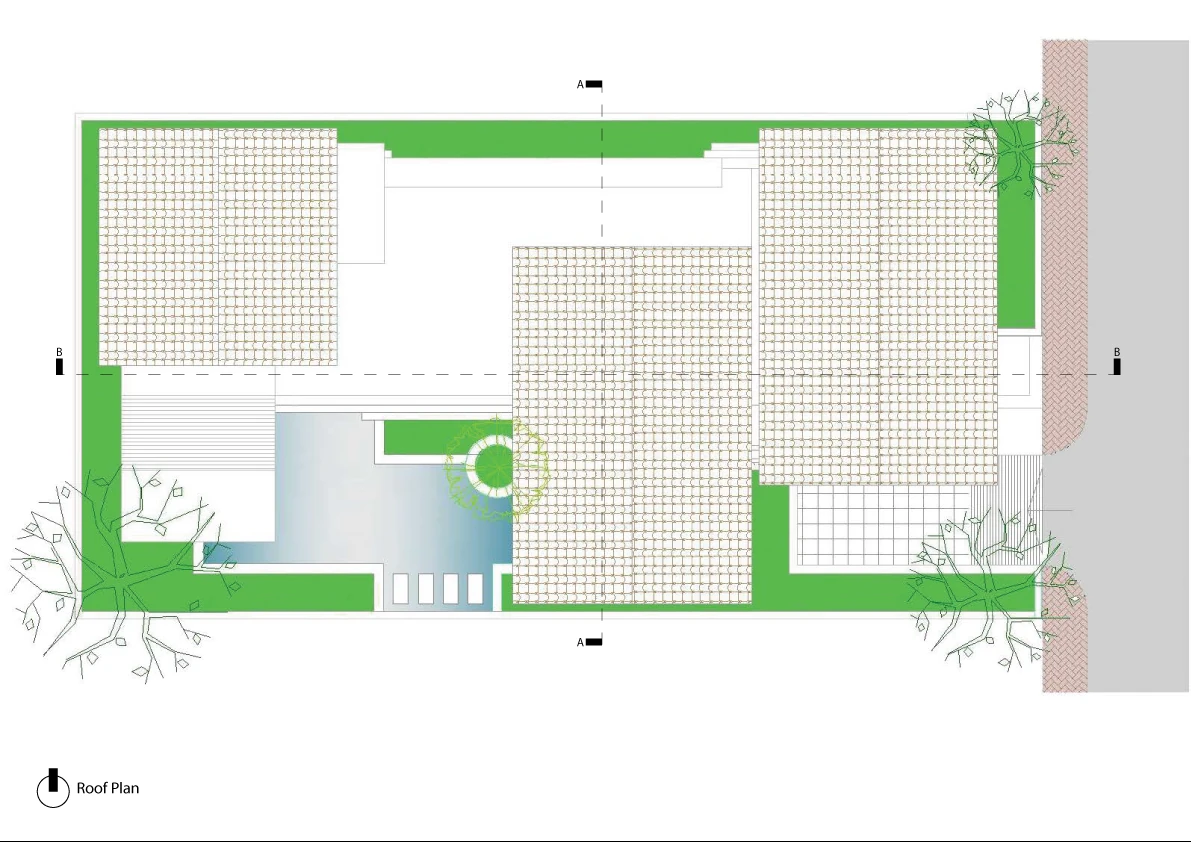

Roof plan

Sections

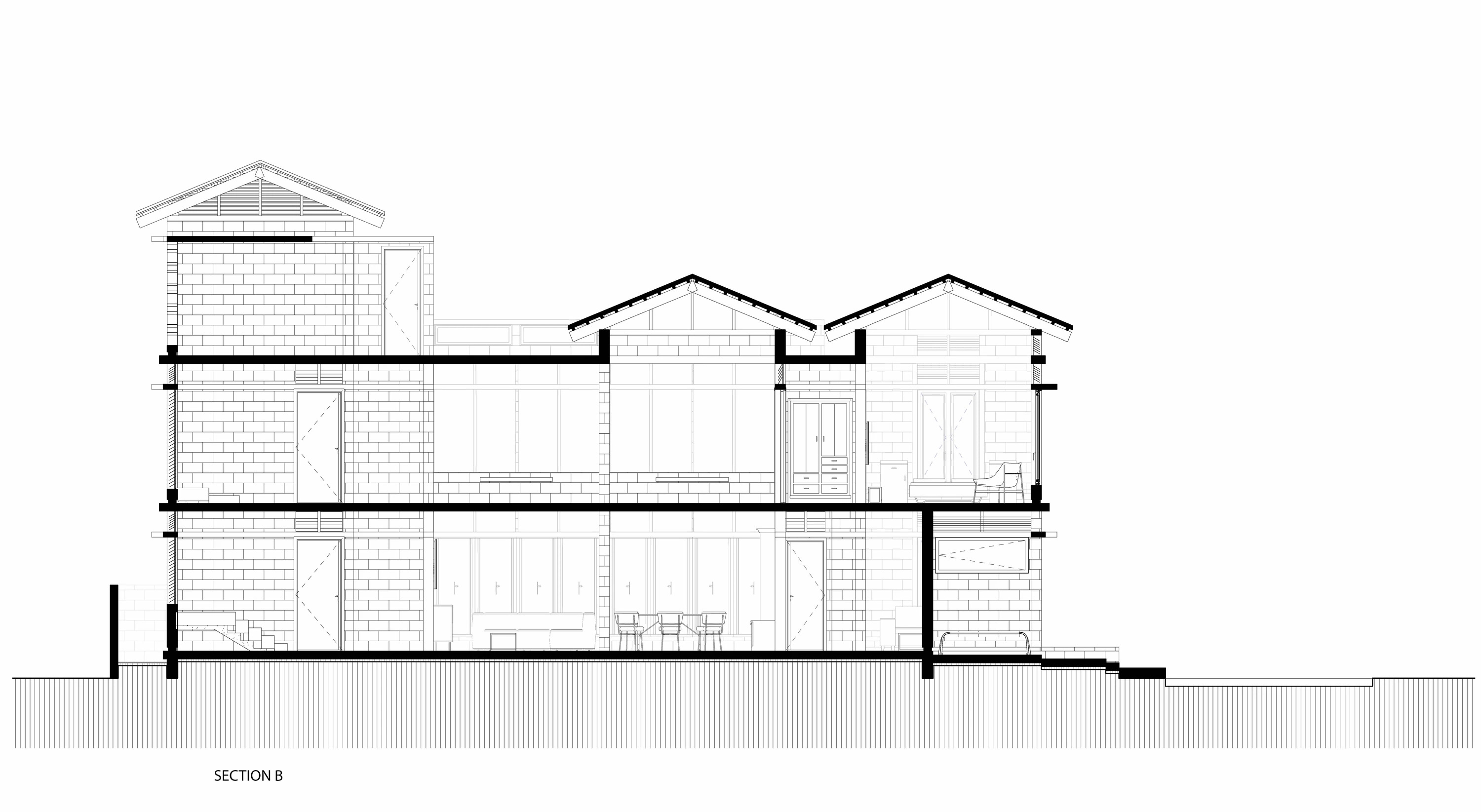

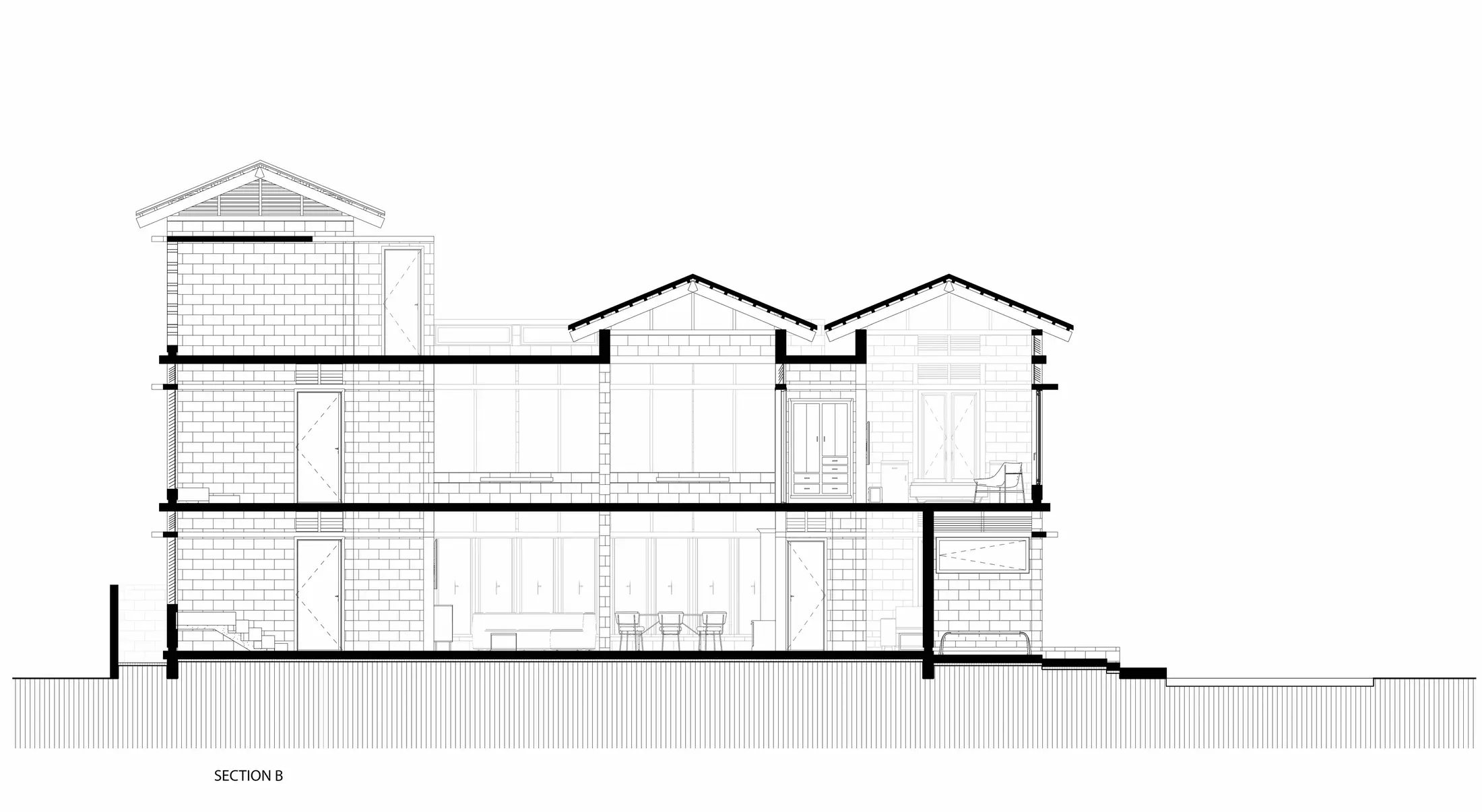

Section B, longitudinal section through living spaces

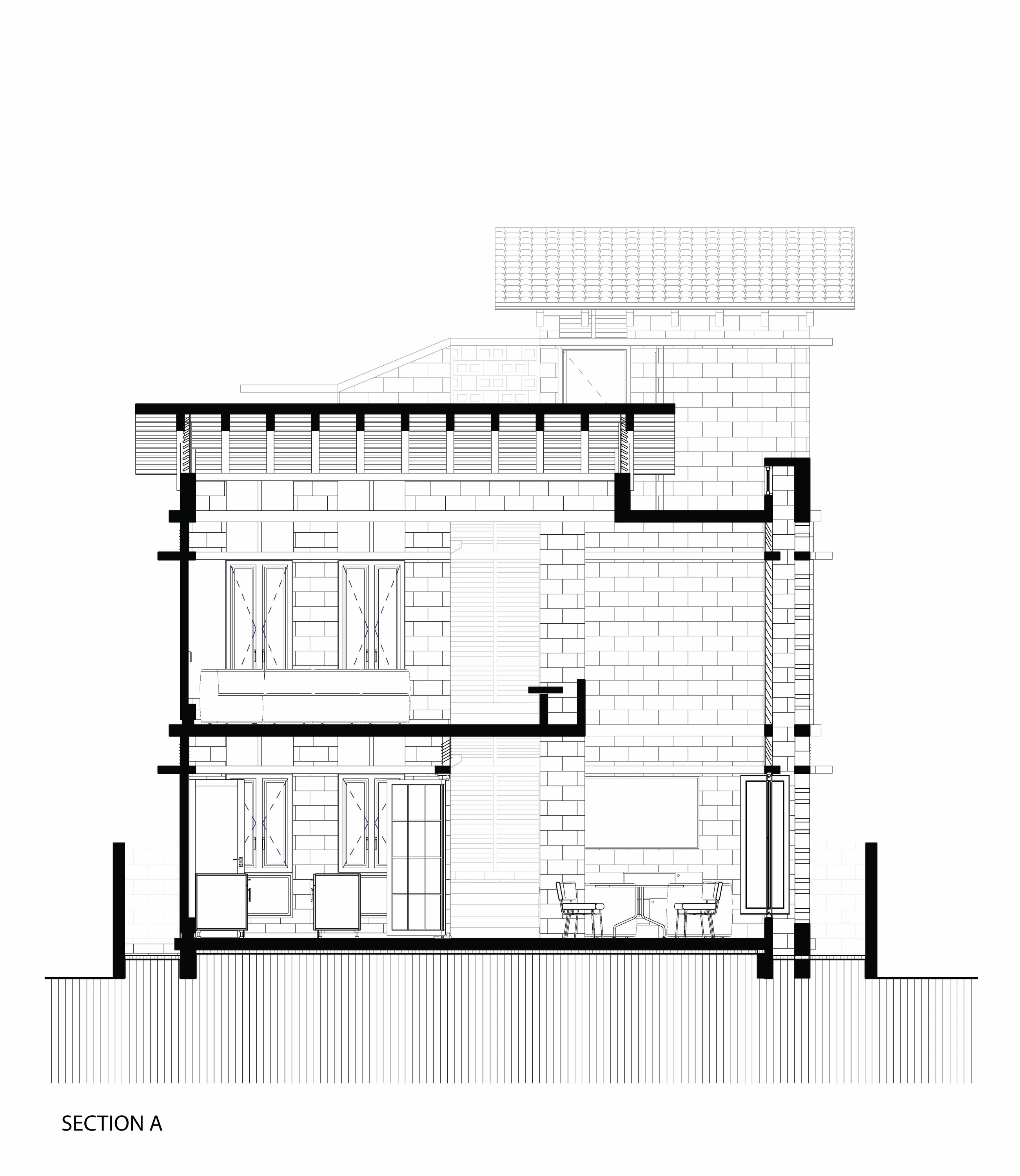

Section A, cross section through courtyard
